Stick Control

Learn creating a Directional Stick using Windows App SDK with this Tutorial

Stick Control shows how to create a Directional Stick that can be used for selecting an Angle and Ratio using Windows App SDK.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

In Windows 11 choose Start and then find or search for Visual Studio 2022 and then select it.
Visual Studio 2022
Once Visual Studio 2022 has started select Create a new project.
Create a new project
Then choose the Blank App, Packages (WinUI in Desktop) and then select Next.
Blank App, Packages (WinUI in Desktop)
After that in Configure your new project type in the Project name as StickControl, then select a Location and then select Create to start a new Solution.
Configure project

Step 2

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Add New Item

Step 3

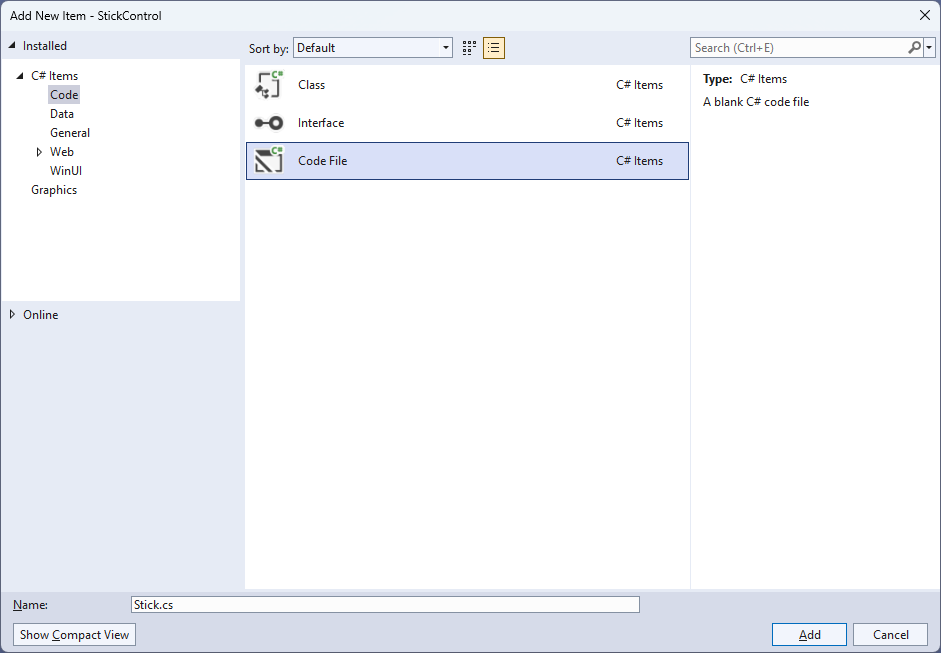

Then in Add New Item from the C# Items list, select Code and then select Code File from the list next to this, then type in the name of Stick.cs and then Click on Add.

Add New Code File

Step 4

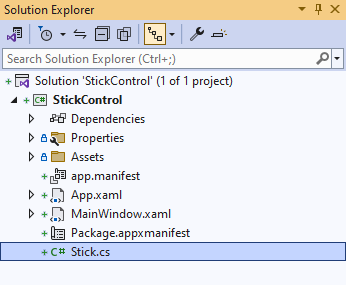

Then from Solution Explorer for the Solution double-click on Stick.cs to see the Code for the User Control.
Solution Explorer Stick.cs

Step 5

You will now be in the View for the Code of Stick.cs, within this type the following Code:


using Microsoft.UI;
using Microsoft.UI.Xaml;
using Microsoft.UI.Xaml.Controls;
using Microsoft.UI.Xaml.Data;
using Microsoft.UI.Xaml.Input;
using Microsoft.UI.Xaml.Media;
using Microsoft.UI.Xaml.Shapes;
using System;

namespace StickControl;

public class Stick : Grid
{
    // Members & Event

    // Dependency Properties

    // Properties

    // ToRadians, ToDegrees, SetMiddle, & GetCircle Methods

    // Move Method

    // Layout & Load Methods and Constructor

}


There are using statements for the User Control, a namespace for StickControl along with a class of Stick that will represent the User Control for the Directional Stick.

Step 6

Then in the namespace of StickControl in the class of Stick after the Comment of // Members & Event type the following Members and Event:


private bool _capture;
private Ellipse _knob;
private Ellipse _face;
private double x = 0;
private double y = 0;
private double _m = 0;
private double _res = 0;
private double _width = 0;
private double _height = 0;
private double _alpha = 0;
private double _alphaM = 0;
private double _centreX = 0;
private double _centreY = 0;
private double _distance = 0;
private double _oldAlphaM = -999.0;
private double _oldDistance = -999.0;

public delegate void ValueChangedEventHandler(
    object sender, double angle, double ratio);
public event ValueChangedEventHandler ValueChanged;


Members include Ellipses needed to represent the different directional parts of the Directional Stick and there is also a delegate along with an event for when the Directional Stick is interacted with.

Step 7

While still in the namespace of StickControl in the class of Stick after the Comment of // Dependency Properties type the following Dependency Properties:


public static readonly DependencyProperty RadiusProperty =
DependencyProperty.Register(nameof(Radius), typeof(int),
typeof(Stick), new PropertyMetadata(100));

public static readonly DependencyProperty KnobProperty =
DependencyProperty.Register(nameof(Knob), typeof(Brush),
typeof(Stick), new PropertyMetadata(new SolidColorBrush(Colors.Red)));

public static readonly DependencyProperty FaceProperty =
DependencyProperty.Register(nameof(Face), typeof(Brush),
typeof(Stick), new PropertyMetadata(new SolidColorBrush(Colors.Black)));

public static readonly DependencyProperty AngleProperty =
DependencyProperty.Register(nameof(Angle), typeof(double),
typeof(Stick), null);

public static readonly DependencyProperty RatioProperty =
DependencyProperty.Register(nameof(Ratio), typeof(double),
typeof(Stick), null);

public static readonly DependencyProperty SensitivityProperty =
DependencyProperty.Register(nameof(Sensitivity), typeof(double),
typeof(Stick), null);


There will also be some Errors as these refer to Properties that will be added in the next step.

These Dependency Properties refer to various Properties of the Directional Stick that can be customised for the User Control.

Step 8

While still in the namespace of StickControl in the class of Stick after the Comment of // Properties type the following Properties:


public int Radius
{
    get { return (int)GetValue(RadiusProperty); }
    set { SetValue(RadiusProperty, value); Load(); }
}

public Brush Knob
{
    get { return (Brush)GetValue(KnobProperty); }
    set { SetValue(KnobProperty, value); }
}

public Brush Face
{
    get { return (Brush)GetValue(FaceProperty); }
    set { SetValue(FaceProperty, value); }
}

public double Angle
{
    get { return (double)GetValue(AngleProperty); }
    set { SetValue(AngleProperty, value); }
}

public double Ratio
{
    get { return (double)GetValue(RatioProperty); }
    set { SetValue(RatioProperty, value); }
}

public double Sensitivity
{
    get { return (double)GetValue(SensitivityProperty); }
    set { SetValue(SensitivityProperty, value); }
}


All previous Errors should now be resolved, however there will be just one for a Method of Load which will be resolved in a future step but if you are getting any others check any previous steps to see if you have missed anything.

These Properties are for values for the User Control such as the Angle or Ratio values for the Directional Stick.

Step 9

While still in the namespace of StickControl in the class of Stick after the Comment of // ToRadians, ToDegrees, SetMiddle, & GetCircle Methods type the following Methods:


private static double ToRadians(double angle) =>
    Math.PI * angle / 180.0;

private static double ToDegrees(double angle) =>
    angle * (180.0 / Math.PI);

private void SetMiddle()
{
    _capture = false;
    Canvas.SetLeft(_knob, (Width - _width) / 2);
    Canvas.SetTop(_knob, (Height - _height) / 2);
    _centreX = Width / 2;
    _centreY = Height / 2;
}

private Ellipse GetCircle(double dimension, string path)
{
    var circle = new Ellipse()
    {
        Height = dimension,
        Width = dimension
    };
    circle.SetBinding(Shape.FillProperty, new Binding()
    {
        Source = this,
        Path = new PropertyPath(path),
        Mode = BindingMode.TwoWay
    });
    return circle;
}


The Methods of ToRadians and ToDegrees will perform the relevant conversions, SetMiddle will determine the centre point of the Directional Stick and GetCircle will create an Ellipse with a Binding for the Fill.

Step 10

While still in the namespace of StickControl in the class of Stick after the Comment of // Move Method type the following Method:


private void Move(PointerRoutedEventArgs e)
{
    x = e.GetCurrentPoint(this).Position.X;
    y = e.GetCurrentPoint(this).Position.Y;
    _res = Math.Sqrt((x - _centreX) *
        (x - _centreX) + (y - _centreY) * (y - _centreY));
    _m = (y - _centreY) / (x - _centreX);
    _alpha = ToDegrees(Math.Atan(_m) + Math.PI / 2);
    if (x < _centreX)
        _alpha += 180.0;
    else if (x == _centreX && y <= _centreY)
        _alpha = 0.0;
    else if (x == _centreX)
        _alpha = 180.0;
    if (_res > Radius)
    {
        x = _centreX + Math.Cos(ToRadians(_alpha) - Math.PI / 2) * Radius;
        y = _centreY + Math.Sin(ToRadians(_alpha) - Math.PI / 2) * Radius
            * ((_alpha % 180.0 == 0.0) ? -1.0 : 1.0);
        _res = Radius;
    }
    if (Math.Abs(_alpha - _alphaM) >= Sensitivity ||
        Math.Abs(_distance * Radius - _res) >= Sensitivity)
    {
        _alphaM = _alpha;
        _distance = _res / Radius;
    }
    if (_oldAlphaM != _alphaM ||
        _oldDistance != _distance)
    {
        Angle = _alphaM;
        Ratio = _distance;
        _oldAlphaM = _alphaM;
        _oldDistance = _distance;
        ValueChanged?.Invoke(this, Angle, Ratio);
    }
    Canvas.SetLeft(_knob, x - _width / 2);
    Canvas.SetTop(_knob, y - _height / 2);
}


The Method of Move will be used by the Directional Stick to determine the current Angle and Ratio along with raising the Event of ValueChanged with those values.

Step 11

While still in the namespace of StickControl in the class of Stick after the Comment of // Layout & Load Methods and Constructor type the following Methods and Constructor:


private void Layout()
{
    _knob = GetCircle(Radius, "Knob");
    _face = GetCircle(Radius * 2, "Face");
    _height = _knob.ActualHeight;
    _width = _knob.ActualWidth;
    Width = _width + Radius * 2;
    Height = _height + Radius * 2;
    SetMiddle();
    PointerExited -= null;
    PointerExited += (object sender, PointerRoutedEventArgs e) =>
        SetMiddle();
    _knob.PointerReleased += (object sender, PointerRoutedEventArgs e) =>
        SetMiddle();
    _knob.PointerPressed += (object sender, PointerRoutedEventArgs e) =>
        _capture = true;
    _knob.PointerMoved += (object sender, PointerRoutedEventArgs e) =>
    {
        if (_capture)
            Move(e);
    };
    _knob.PointerExited += (object sender, PointerRoutedEventArgs e) =>
        SetMiddle();
}

private void Load()
{
    Layout();
    Children.Clear();
    Children.Add(_face);
    var canvas = new Canvas()
    {
        Width = Width,
        Height = Height
    };
    canvas.Children.Add(_knob);
    Children.Add(canvas);
}

public Stick() => Load();


All Errors should now be resolved, if you continue to get them check any previous steps to see if you have missed anything.

The Constructor will be used to create the look-and-feel of the User Control and will use the Method of Load which will use the Method of Layout which will capture if the User Control is being interacted with.

Step 12

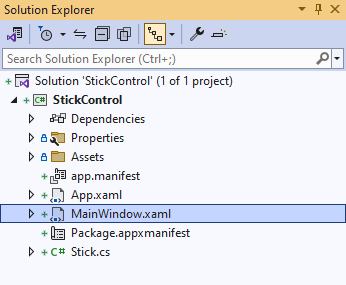

Within Solution Explorer for the Solution double-click on MainWindow.xaml to see the XAML for the Main Window.
Solution Explorer MainWindow.xaml

Step 13

In the XAML for MainWindow.xaml there will be some XAML for a StackPanel, this should be Removed:


<StackPanel Orientation="Horizontal"
HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button x:Name="myButton" Click="myButton_Click">Click Me</Button>
</StackPanel>


Step 14

While still in the XAML for MainWindow.xaml above </Window>, type in the following XAML:


<StackPanel VerticalAlignment="Center" HorizontalAlignment="Center">
    <TextBlock Name="Label" HorizontalAlignment="Center"
    Style="{StaticResource SubtitleTextBlockStyle}"/>
    <local:Stick Radius="200" Knob="{ThemeResource AccentButtonBackground}"
    Face="WhiteSmoke" ValueChanged="ValueChanged"/>
</StackPanel>


This XAML contains a StackPanel including a TextBlock and the User Control of Stick with the Event of ValueChanged.

Step 15

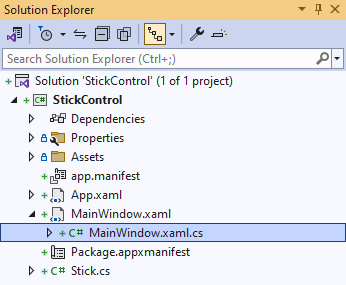

Within Solution Explorer for the Solution select the arrow next to MainWindow.xaml then double-click on MainWindow.xaml.cs to see the Code for the Main Window.
Solution Explorer MainWindow.xaml.cs

Step 16

In the Code for MainWindow.xaml.cs there be a Method of myButton_Click(...) this should be Removed by removing the following:


private void myButton_Click(object sender, RoutedEventArgs e)
{
    myButton.Content = "Clicked";
}


Step 17

Once myButton_Click(...) has been removed, within the Constructor of public MainWindow() { ... } and below the line of this.InitializeComponent(); type in the following Code:


private void ValueChanged(object sender, double angle, double ratio) =>
    Label.Text = $"Angle {angle}, Ratio {ratio}";


The Method of ValueChanged will be used with Event Handler from the XAML to display the selected Angle and Ratio, this Method uses Arrow Syntax with the => for an expression body which is useful when a Method only has one line.

Step 18

That completes the Windows App SDK application. In Visual Studio 2022 from the Toolbar select StickControl (Package) to Start the application.
StickControl (Package)

Step 19

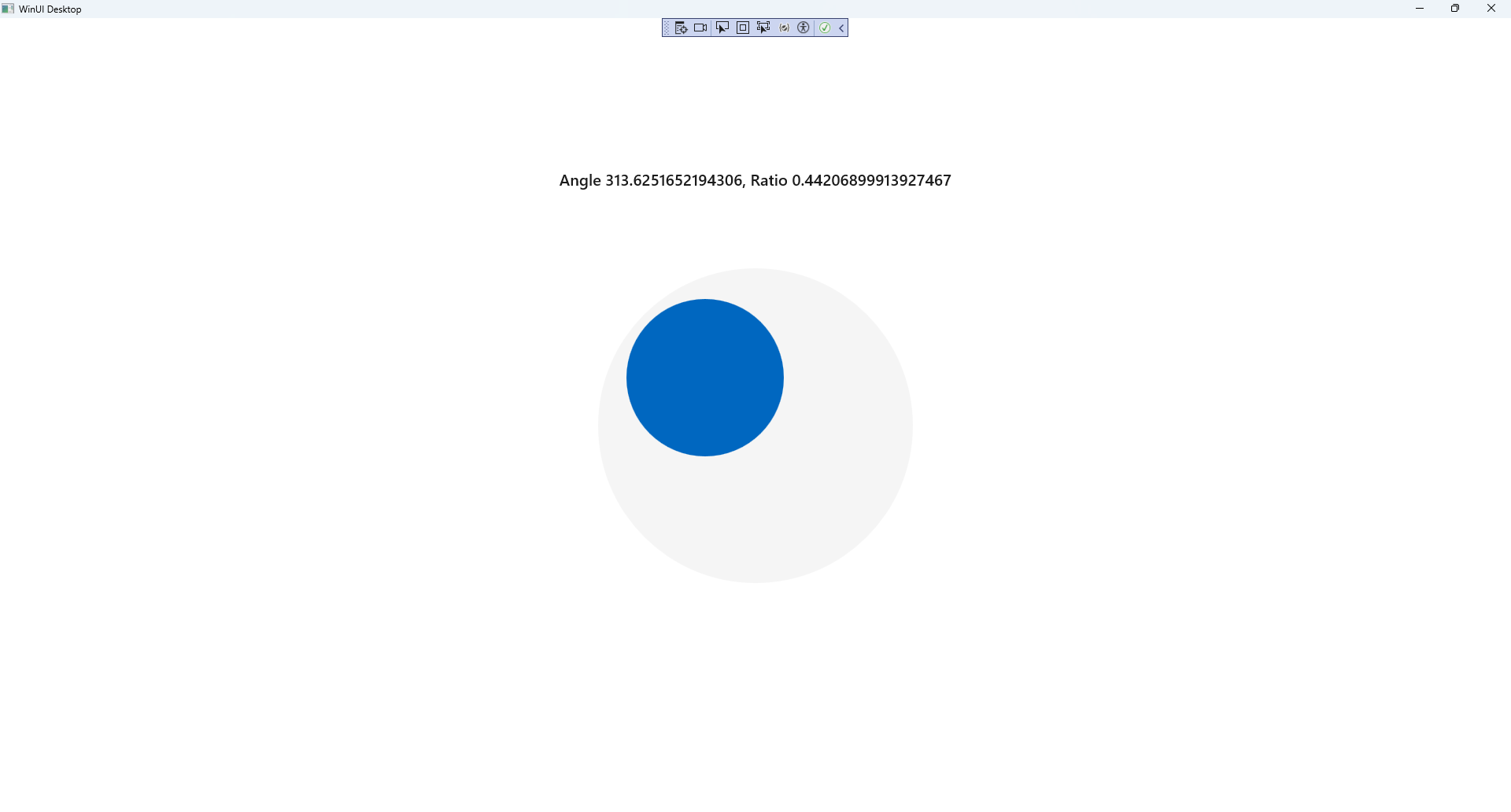

Once running you will see the Stick Control displayed, then you can select and move the centre portion of the Directional Stick and can see the Angle around the centre, or the Ratio of the distance between the centre and the outside displayed.

Stick Control Running and Output

Step 20

To Exit the Windows App SDK application, select the Close button from the top right of the application as that concludes this Tutorial for Windows App SDK from tutorialr.com!
Close application
