Parallax View

Learn to use the Parallax View in Windows App SDK with this Tutorial

Parallax View shows how you can use ParallaxView which allows you to combine the scroll of a list to a background element so as the list scrolls it animates the background element with Parallax in an application using the Windows App SDK.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

In Windows 11 choose Start and then find or search for Visual Studio 2022 and then select it.
Visual Studio 2022
Once Visual Studio 2022 has started select Create a new project.
Create a new project
Then choose the Blank App, Packages (WinUI in Desktop) and then select Next.
Blank App, Packages (WinUI in Desktop)
After that in Configure your new project type in the Project name as ParallaxView, then select a Location and then select Create to start a new Solution.
Configure project

Step 2

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Add New Item

Step 3

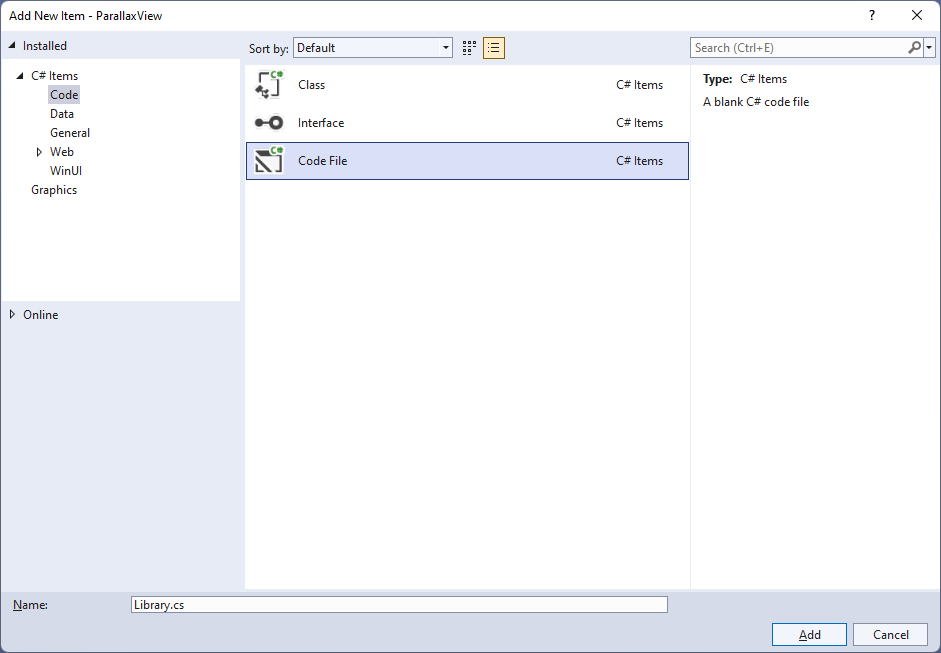

Then in Add New Item from the C# Items list, select Code and then select Code File from the list next to this, then type in the name of Library.cs and then Click on Add.

Add New Code File

Step 4

You will now be in the View for the Code of Library.cs, within this type the following Code:


using Microsoft.UI.Xaml.Controls;
using System;

internal class Library
{
    private class Item
    {
        public Guid Id { get; set; } = Guid.NewGuid();
        public string Text { get; set; } = string.Empty;
    }

    public static void Add(ListView listView, string value)
    {
        listView.Items.Add(new Item
        {
            Text = value
        });
    }

    public static void Remove(ListView listView, object sender)
    {
        Item item = (sender as AppBarButton).Tag as Item;
        listView.Items.Remove(item);
    }
}


The Class that has been defined in Library.cs has a Class within it of Item which is marked private, this is just for use with Library.cs which will represent what will be added or removed from the ListView which is performed in the Methods of Add and Remove which are declared as static so an Instance of the Class is not needed.

Step 5

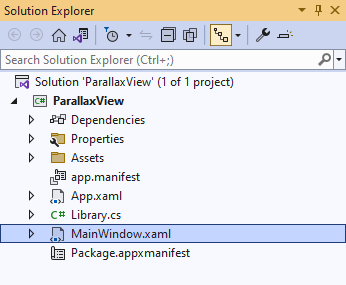

Within Solution Explorer for the Solution double-click on MainWindow.xaml to see the XAML for the Main Window.
Solution Explorer MainWindow.xaml

Step 6

In the XAML for MainWindow.xaml there will be some XAML for a StackPanel, this should be Removed:


<StackPanel Orientation="Horizontal"
HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button x:Name="myButton" Click="myButton_Click">Click Me</Button>
</StackPanel>


Step 7

While still in the XAML for MainWindow.xaml above </Window>, type in the following XAML:


<Grid>
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto"/>
        <RowDefinition Height="*"/>
    </Grid.RowDefinitions>
    <AutoSuggestBox Grid.Row="0" Margin="25" Name="Value" QueryIcon="Add"
        QuerySubmitted="Value_QuerySubmitted"/>
    <Grid Grid.Row="1">
        <ParallaxView Source="{x:Bind Display}" VerticalShift="100">
            <StackPanel Spacing="5" Orientation="Vertical"
                HorizontalAlignment="Center">
                <Rectangle Margin="10" Width="75" Height="75" Fill="Black"/>
                <Rectangle Margin="10" Width="75" Height="75" Fill="Gray"/>
                <Rectangle Margin="10" Width="75" Height="75" Fill="Red"/>
                <Rectangle Margin="10" Width="75" Height="75" Fill="Orange"/>
                <Rectangle Margin="10" Width="75" Height="75" Fill="Yellow"/>
                <Rectangle Margin="10" Width="75" Height="75" Fill="Green"/>
                <Rectangle Margin="10" Width="75" Height="75" Fill="Cyan"/>
                <Rectangle Margin="10" Width="75" Height="75" Fill="Blue"/>
                <Rectangle Margin="10" Width="75" Height="75" Fill="Magenta"/>
                <Rectangle Margin="10" Width="75" Height="75" Fill="Purple"/>
            </StackPanel>
        </ParallaxView>
        <ListView x:Name="Display">
            <ListView.ItemTemplate>
                <DataTemplate>
                    <Grid>
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition Width="*"/>
                            <ColumnDefinition Width="Auto"/>
                        </Grid.ColumnDefinitions>
                        <TextBlock Grid.Column="0" Text="{Binding Text}"
                        VerticalAlignment="Center"/>
                        <AppBarButton Grid.Column="1" Icon="Remove" Label="Remove"
                        Tag="{Binding}" Click="Remove_Click"/>
                    </Grid>
                </DataTemplate>
            </ListView.ItemTemplate>
            <ListView.ItemContainerStyle>
                <Style TargetType="ListViewItem">
                    <Setter Property="HorizontalContentAlignment" Value="Stretch" />
                </Style>
            </ListView.ItemContainerStyle>
        </ListView>
    </Grid>
</Grid>


This XAML features a Grid with two Rows, the first Row is for a AutoSuggestBox to add an Item, then the second Row is the ParallaxView containing Rectangle elements which has the Source set to the ListView which uses a DataTemplate which controls how each Item in the ListView will look like and contains the AppBarButton which will be used to remove an Item.

Step 8

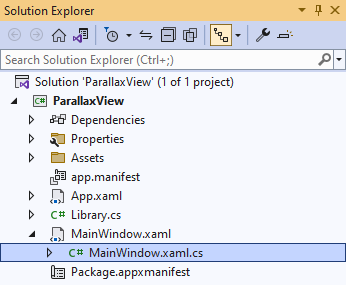

Within Solution Explorer for the Solution select the arrow next to MainWindow.xaml then double-click on MainWindow.xaml.cs to see the Code for the Main Window.
Solution Explorer MainWindow.xaml.cs

Step 9

In the Code for MainWindow.xaml.cs there be a Method of myButton_Click(...) this should be Removed by removing the following:


private void myButton_Click(object sender, RoutedEventArgs e)
{
    myButton.Content = "Clicked";
}


Step 10

Once myButton_Click(...) has been removed, type the following Code below the end of the Constructor of public MainWindow() { ... }:


private void Value_QuerySubmitted(AutoSuggestBox sender,
    AutoSuggestBoxQuerySubmittedEventArgs args)
{
    Library.Add(Display, Value.Text);
}

private void Remove_Click(object sender, RoutedEventArgs e)
{
    Library.Remove(Display, sender);
}


The Method of Value_QuerySubmitted will call the Method within Library.cs of Add from Library passing in the ListView and also passes in the Property for Text. The Method of Remove_Click will call the Method for Remove with the ListView and the object for sender.

Step 11

That completes the Windows App SDK application. In Visual Studio 2022 from the Toolbar select ParallaxView (Package) to Start the application.
ParallaxView (Package)

Step 12

Once running you should see a AutoSuggestBox and some Rectangle elements.

Parallax View Running

Step 13

You can type into the AutoSuggestBox any values and then press Enter or Click on the + option to add them, then when you add a few, you can try scrolling the ListView and you should see the Parallax View in action.

Parallax View Output

Step 14

To Exit the Windows App SDK application, select the Close button from the top right of the application as that concludes this Tutorial for Windows App SDK from tutorialr.com!
Close application
