Page Transitions

Learn to use Page Transitions using Windows App SDK with this Tutorial

Page Transitions shows how you can create Transitions that apply to Pages within an application using the Windows App SDK.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

In Windows 11 choose Start and then find or search for Visual Studio 2022 and then select it.
Visual Studio 2022
Once Visual Studio 2022 has started select Create a new project.
Create a new project
Then choose the Blank App, Packages (WinUI in Desktop) and then select Next.
Blank App, Packages (WinUI in Desktop)
After that in Configure your new project type in the Project name as ThemeTransition, then select a Location and then select Create to start a new Solution.
Configure project

Step 2

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Add New Item

Step 3

Then in Add New Item from the C# Items list, select Code and then select Code File from the list next to this, then type in the name of Library.cs and then Click on Add.

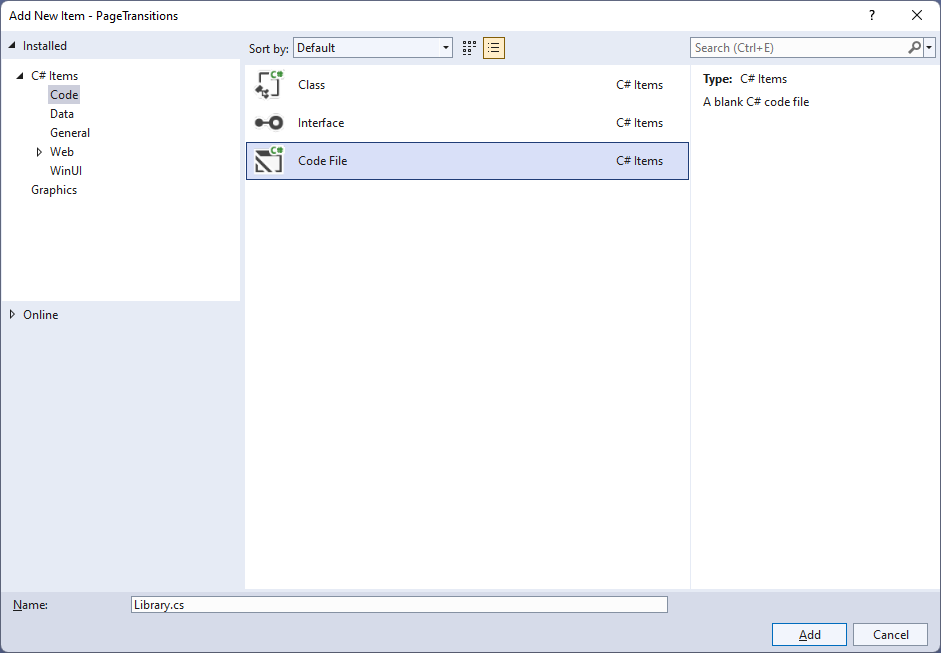

Add New Code File

Step 4

You will now be in the View for the Code of Library.cs, within this type the following Code:


using Microsoft.UI.Xaml.Controls;
using Microsoft.UI.Xaml.Media;
using Microsoft.UI.Xaml.Media.Animation;
using Microsoft.UI.Xaml.Shapes;
using System;

internal class Library
{
    public static Frame Frame { get; set; }

    public static string Option { get; set; }

    public static void Navigate(Type page, object parameter = null)
    {
        NavigationTransitionInfo transitionInfo = Option switch
        {
            "Entrance" => new EntranceNavigationTransitionInfo(),
            "Drill In" => new DrillInNavigationTransitionInfo(),
            "Slide from Right" => new SlideNavigationTransitionInfo()
            {
                Effect = SlideNavigationTransitionEffect.FromRight
            },
            "Slide from Left" => new SlideNavigationTransitionInfo()
            {
                Effect = SlideNavigationTransitionEffect.FromLeft
            },
            "Supress" => new SuppressNavigationTransitionInfo(),
            _ => null,
        };
        if (Frame.BackStackDepth > 0)
        {
            Frame.BackStack.Clear();
        }
        Frame.Navigate(page, parameter, transitionInfo);
    }

    public static Brush GetFill(object parameter)
    {
        return (parameter as Rectangle).Fill;
    }
}


The Class that has been defined in Library.cs has Properties for Frame and Option then a Method for Navigate that will be used to set the NavigationTransitionInfo to set the different Page Transitions when using Navigate with the Frame and the BackStack for the Frame is also cleared so the different Page Transitions can be seen. There is also a Method to get the Fill from a Rectangle from an object and everything is declared as static so an Instance of the Class is not needed.

Step 5

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Add New Item

Step 6

Then in Add New Item from the WinUI items list, select Page and then select Blank Page (WinUI 3) from the list next to this, then type in the name of ContentPage.xaml and then Click on Add.

Add New Blank page

Step 7

Within Solution Explorer for the Solution double-click on ContentPage.xaml to see the XAML for the Content Page.

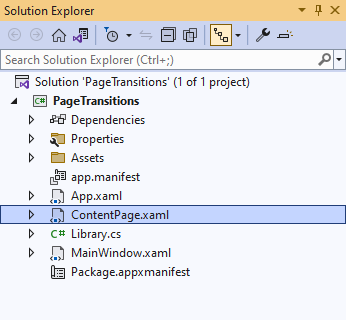

Solution Explorer ContentPage.xaml

Step 8

Then in the XAML for ContentPage.xaml, below <Grid> and above </Grid>, type in the following XAML:


<ListView Name="Display" Margin="10">
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Black" Fill="Black" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Gray" Fill="Gray" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Red" Fill="Red" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Orange" Fill="Orange" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Yellow" Fill="Yellow" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Green" Fill="Green" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
        Width="64" Height="64" Tag="Cyan" Fill="Cyan" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
        Width="64" Height="64" Tag="Blue" Fill="Blue" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Magenta" Fill="Magenta" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Purple" Fill="Purple" Tapped="Rectangle_Tapped"/>
</ListView>


This ListView contains Rectangle elements of different colours plus each has the Event for Tapped set to the Method of Rectangle_Tapped which will be triggered when the Rectangle is Tapped or Clicked.

Step 9

Within Solution Explorer for the Solution select the arrow next to ContentPage.xaml then double-click on ContentPage.xaml.cs to see the Code for the Content Page.

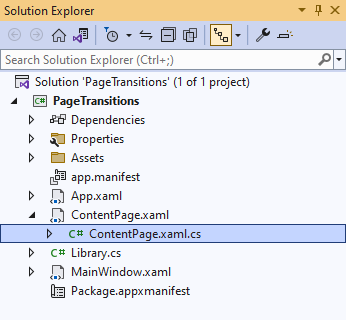

Solution Explorer ContentPage.xaml.cs

Step 10

In the Code for ContentPage.xaml.cs type in the following Code below the end of the Constructor of public ContentPage() { ... }:


private void Rectangle_Tapped(object sender, TappedRoutedEventArgs e)
{
    Library.Navigate(typeof(DetailPage), sender);
}


This will define the Method of Rectangle_Tapped which will call the Method of Navigate in the Class of Library when a Rectangle is Tapped or Clicked.

Step 11

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Add New Item

Step 12

Then in Add New Item from the WinUI items list, select Page and then select Blank Page (WinUI 3) from the list next to this, then type in the name of DetailPage.xaml and then Click on Add.

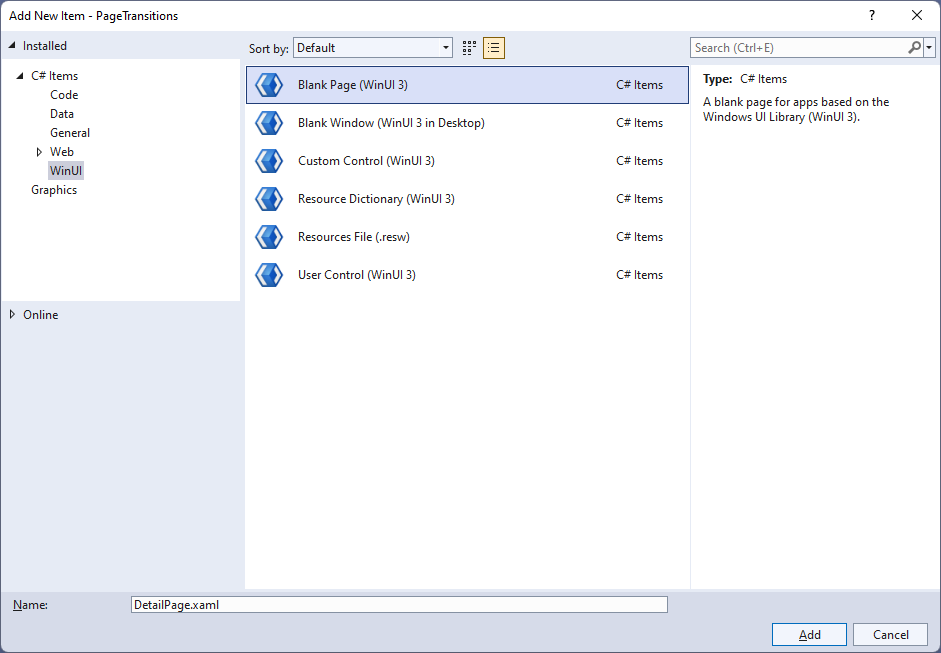

Add New Blank page

Step 13

Within Solution Explorer for the Solution double-click on DetailPage.xaml to see the XAML for the Detail Page.

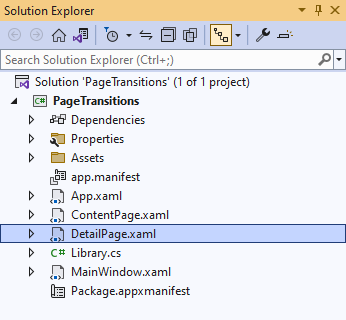

Solution Explorer DetailPage.xaml

Step 14

Then in the XAML for DetailPage.xaml, below <Grid> and above </Grid>, type in the following XAML:


<Rectangle Margin="50" Name="Target"/>
<CommandBar VerticalAlignment="Bottom">
    <AppBarButton Icon="Back" Label="Back" Click="Back_Click"/>
</CommandBar>


There is Rectangle element of Target along with an AppBarButton set to a Method of Back_Click which will be triggered when the AppBarButton is Clicked.

Step 15

Within Solution Explorer for the Solution select the arrow next to DetailPage.xaml then double-click on DetailPage.xaml.cs to see the Code for the Detail Page.

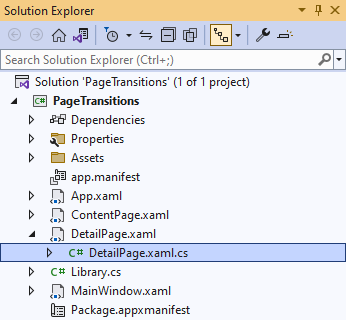

Solution Explorer DetailPage.xaml.cs

Step 16

In the Code for DetailPage.xaml.cs type in the following Code below the end of the Constructor of public DetailPage() { ... }:


protected override void OnNavigatedTo(NavigationEventArgs e)
{
    Target.Fill = Library.GetFill(e.Parameter);
}

private void Back_Click(object sender, RoutedEventArgs e)
{
    Library.Frame.GoBack();
}


There is the Method for OnNavigatedTo that uses override to change the functionality of the Method for OnNavigatedTo which will set Fill for the Rectangle element of Target using the Method of GetFill from the Class for Library and there is the Method for when the AppBarButton is Clicked of Back_Click which calls the Method of GoBack for the Frame in the Class for Library.

Step 17

Within Solution Explorer for the Solution double-click on MainWindow.xaml to see the XAML for the Main Window.

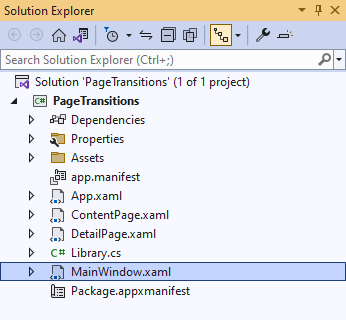

Solution Explorer MainWindow.xaml

Step 18

In the XAML for MainWindow.xaml there will be some XAML for a StackPanel, this should be Removed:


<StackPanel Orientation="Horizontal"
HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button x:Name="myButton" Click="myButton_Click">Click Me</Button>
</StackPanel>


Step 19

While still in the XAML for MainWindow.xaml above </Window>, type in the following XAML:


<Grid>
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto"/>
        <RowDefinition Height="*"/>
    </Grid.RowDefinitions>
    <ComboBox Grid.Row="0" Name="Options" Margin="25"
        HorizontalAlignment="Stretch"
        SelectionChanged="Options_SelectionChanged">
        <ComboBoxItem IsSelected="True">Slide from Bottom (Default)</ComboBoxItem>
        <ComboBoxItem>Entrance</ComboBoxItem>
        <ComboBoxItem>Drill In</ComboBoxItem>
        <ComboBoxItem>Slide from Right</ComboBoxItem>
        <ComboBoxItem>Slide from Left</ComboBoxItem>
        <ComboBoxItem>Supress</ComboBoxItem>
    </ComboBox>
    <Frame Grid.Row="1" Name="Frame"/>
</Grid>


This XAML features a Grid with the top Row set to a ComboBox that has the Page Transitions to use and the Event for SelectionChanged set to the Method for Options_SelectionChanged with the second Row set to a Frame.

Step 20

Within Solution Explorer for the Solution select the arrow next to MainWindow.xaml then double-click on MainWindow.xaml.cs to see the Code for the Main Window.

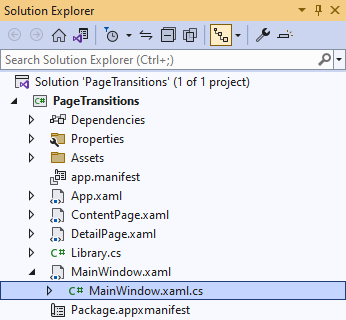

Solution Explorer MainWindow.xaml.cs

Step 21

In the Code for MainWindow.xaml.cs there be a Method of myButton_Click(...) this should be Removed by removing the following:


private void myButton_Click(object sender, RoutedEventArgs e)
{
    myButton.Content = "Clicked";
}


Step 22

Once myButton_Click(...) has been removed, type the following Code below the end of the Constructor of public MainWindow() { ... }:


private void Options_SelectionChanged(object sender, SelectionChangedEventArgs e)
{
    Library.Option = (Options.SelectedItem as ComboBoxItem).Content as string;
}


The Method of Options_SelectionChanged will be triggered when an option has been selected from the ComboBox and set the Property for Option within the class of Library.

Step 23

While still in the Code for MainWindow.xaml.cs within the Constructor of public MainWindow() { ... } and below the line of this.InitializeComponent(); type in the following Code:


Library.Frame = Frame;
Library.Navigate(typeof(ContentPage));


The Constructor of public MainWindow() { ... } should look like the following:


public MainWindow()
{
    this.InitializeComponent();
    Library.Frame = Frame;
    Library.Navigate(typeof(ContentPage));
}


These set up the Property for the Frame and call the Method for Navigate in the class of Library.

Step 24

That completes the Windows App SDK application. In Visual Studio 2022 from the Toolbar select PageTransitions (Package) to Start the application.
PageTransitions (Package)

Step 25

Once running you should see the ComboBox with the Page Transitions options and Rectangle elements.

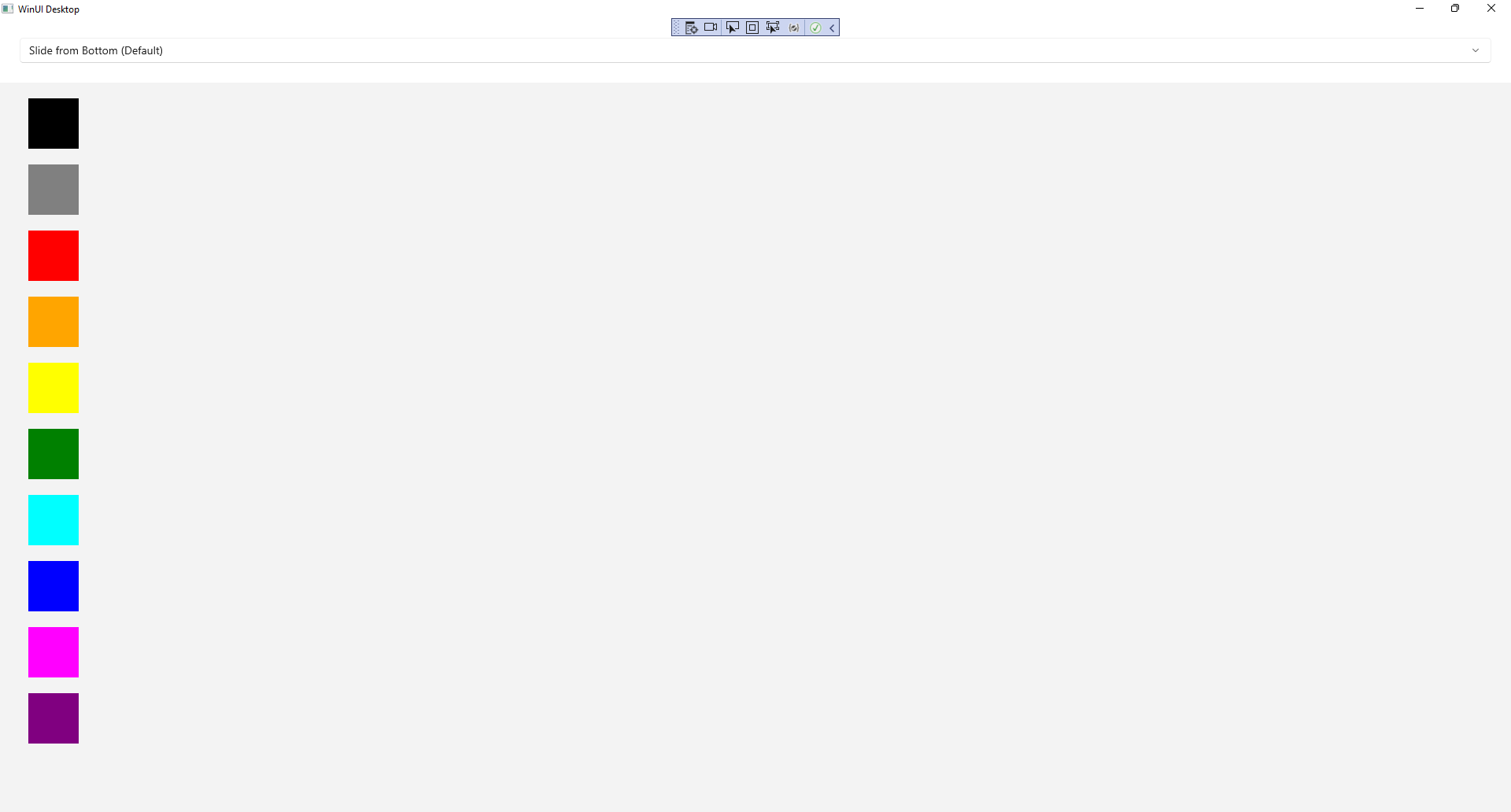

Page Transitions Running

Step 26

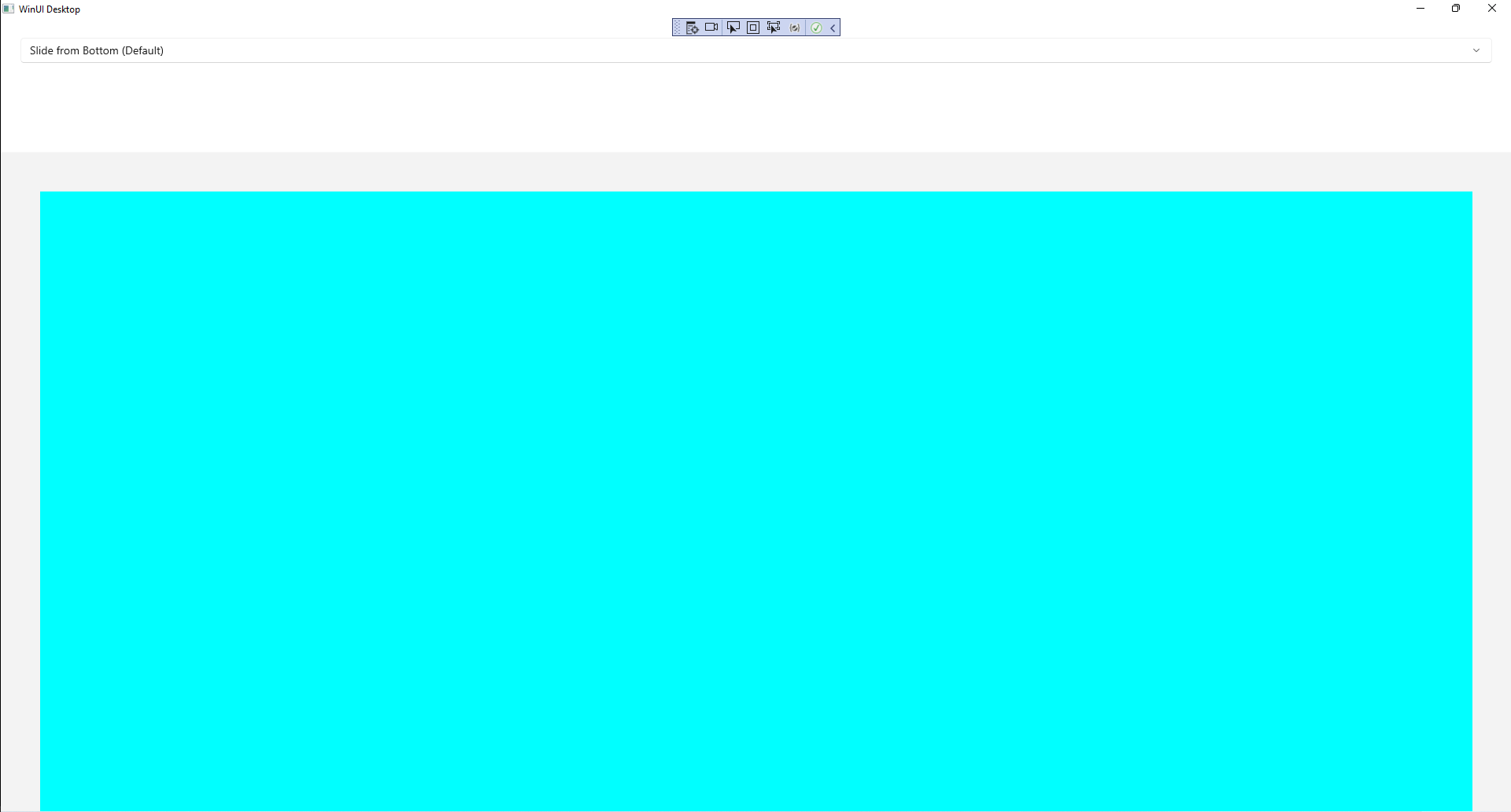

You can Click on any of the Rectangle elements to switch from the Content Page to the Detail Page and observe the Page Transition based on the option selected from the ComboBox.

Page Transitions Output

Step 27

To Exit the Windows App SDK application, select the Close button from the top right of the application as that concludes this Tutorial for Windows App SDK from tutorialr.com!
