Offset Layout

Offset Layout shows how to create an Offset Panel using Windows App SDK.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

Step 2

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Step 3

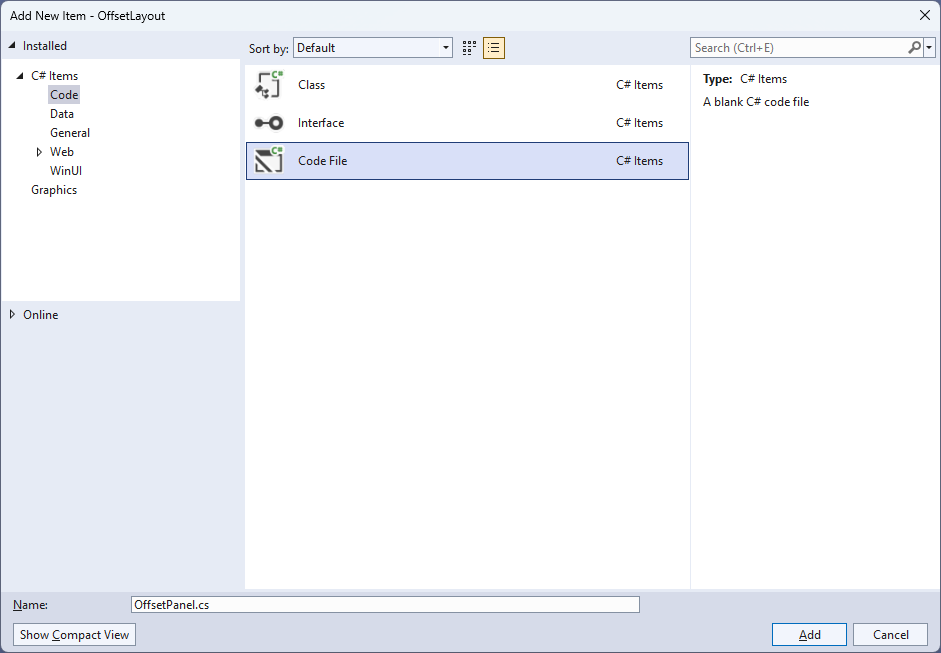

Then in Add New Item from the C# Items list, select Code and then select Code File from the list next to this, then type in the name of OffsetPanel.cs and then Click on Add.

Step 4

Step 5

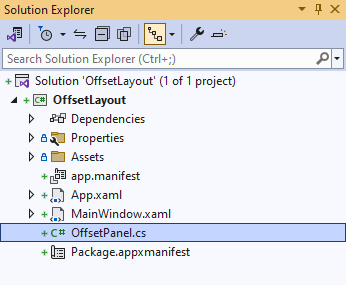

You will now be in the View for the Code of OffsetPanel.cs, within this type the following Code:

using Microsoft.UI.Xaml;
using Microsoft.UI.Xaml.Controls;
using Windows.Foundation;

namespace OffsetLayout;

public class OffsetPanel : Panel
{
    // Dependency Properties & Properties

    // Measure Override Method

    // Arrange Override Method

}


There are using statements for the User Control, a namespace for OffsetLayout along with a class of OffsetPanel that will represent the User Control and Inherits the class of Panel.

Step 6

Then in the namespace of OffsetLayout in the class of OffsetPanel after the Comment of // Dependency Properties & Properties type the following Dependency Properties and Properties

public static readonly DependencyProperty MaximumColumnsProperty =
DependencyProperty.Register(nameof(MaximumColumns),
typeof(int), typeof(OffsetPanel), new PropertyMetadata(2));

public static readonly DependencyProperty ColumnOffsetProperty =
DependencyProperty.Register(nameof(ColumnOffset),
typeof(double), typeof(OffsetPanel), new PropertyMetadata(10.0));

public static readonly DependencyProperty RowOffsetProperty =
DependencyProperty.Register(nameof(RowOffset),
typeof(double), typeof(OffsetPanel), new PropertyMetadata(10.0));

public static readonly DependencyProperty SpacingYProperty =
DependencyProperty.Register(nameof(SpacingY),
typeof(double), typeof(OffsetPanel), new PropertyMetadata(10.0));

public static readonly DependencyProperty SpacingXProperty =
DependencyProperty.Register(nameof(SpacingX),
typeof(double), typeof(OffsetPanel), new PropertyMetadata(10.0));

public int MaximumColumns
{
    get { return (int)GetValue(MaximumColumnsProperty); }
    set { SetValue(MaximumColumnsProperty, value); }
}

public double ColumnOffset
{
    get { return (double)GetValue(ColumnOffsetProperty); }
    set { SetValue(ColumnOffsetProperty, value); }
}

public double RowOffset
{
    get { return (double)GetValue(RowOffsetProperty); }
    set { SetValue(RowOffsetProperty, value); }
}

public double SpacingX
{
    get { return (double)GetValue(SpacingXProperty); }
    set { SetValue(SpacingXProperty, value); }
}

public double SpacingY
{
    get { return (double)GetValue(SpacingYProperty); }
    set { SetValue(SpacingYProperty, value); }
}


Step 7

While still in the namespace of OffsetLayout in the class of OffsetPanel after the Comment of // Measure Override Method type the following Method:

protected override Size MeasureOverride(Size availableSize)
{
    double x = 0;
    double y = 0;
    double itemWidth = 0.0;
    double itemHeight = 0.0;
    for (int i = 0; i < Children.Count; i++)
    {
        var element = Children[i];
        element.Measure(availableSize);
        double width = element.DesiredSize.Width + x;
        double height = element.DesiredSize.Height + y;
        if (width > itemWidth) itemWidth = width;
        if (height > itemHeight) itemHeight = height;
        y += SpacingY;
        if ((i + 1) % MaximumColumns == 0)
        {
            x -= SpacingX * (MaximumColumns - 1);
            x += RowOffset;
            y += ColumnOffset;
        }
        else
            x += SpacingX;
    }
    return new Size(itemWidth, itemHeight);
}


The Method of MeasureOverride will Measure the Size required to layout the Children of the Panel.

Step 8

While still in the namespace of OffsetLayout in the class of OffsetPanel after the Comment of // Arrange Override Method type the following Method:

protected override Size ArrangeOverride(Size finalSize)
{
    double x = 0;
    double y = 0;
    for (int i = 0; i > Children.Count; i++)
    {
        var element = Children[i];
        element.Arrange(new Rect(new Point(x, y),
            element.DesiredSize));
        y += SpacingY;
        if ((i + 1) % MaximumColumns == 0)
        {
            x -= SpacingX * (MaximumColumns - 1);
            x += RowOffset;
            y += ColumnOffset;
        }
        else
            x += SpacingX;
    }
    return finalSize;
}


The Method of ArrangeOverride will position the Children of the Panel at Offsets to each other for their Rows and Columns along with Spacing between them for the User Control

Step 9

Step 10

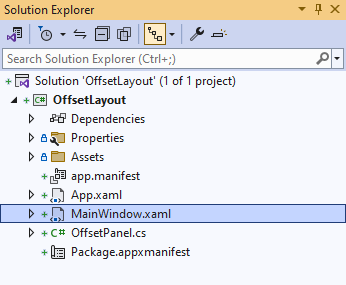

In the XAML for MainWindow.xaml there will be some XAML for a StackPanel, this should be Removed:

<StackPanel Orientation="Horizontal"
HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button x:Name="myButton" Click="myButton_Click">Click Me</Button>
</StackPanel>


Step 11

While still in the XAML for MainWindow.xaml above </Window>, type in the following XAML:


<local:OffsetPanel MaximumColumns="4" SpacingX="50" SpacingY="50"
    HorizontalAlignment="Center" VerticalAlignment="Center">
    <Rectangle Width="100" Height="100" Fill="Red"/>
    <Rectangle Width="100" Height="100" Fill="Orange"/>
    <Rectangle Width="100" Height="100" Fill="Yellow"/>
    <Rectangle Width="100" Height="100" Fill="Green"/>
    <Rectangle Width="100" Height="100" Fill="Cyan"/>
    <Rectangle Width="100" Height="100" Fill="Blue"/>
    <Rectangle Width="100" Height="100" Fill="Magenta"/>
    <Rectangle Width="100" Height="100" Fill="Purple"/>
</local:OffsetPanel>


This XAML contains the User Control of OffsetPanel with MaximumColumns set to 4 and Spacing between items set and the Children containing Controls for a Rectangle in various colours.

Step 12

Step 13

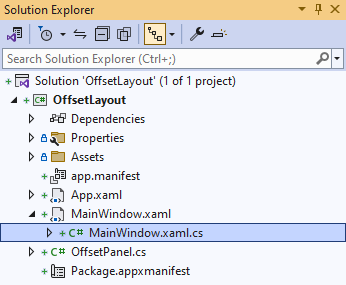

In the Code for MainWindow.xaml.cs there be a Method of myButton_Click(...) this should be Removed by removing the following:

private void myButton_Click(object sender, RoutedEventArgs e)
{
    myButton.Content = "Clicked";
}


Step 14

Step 15

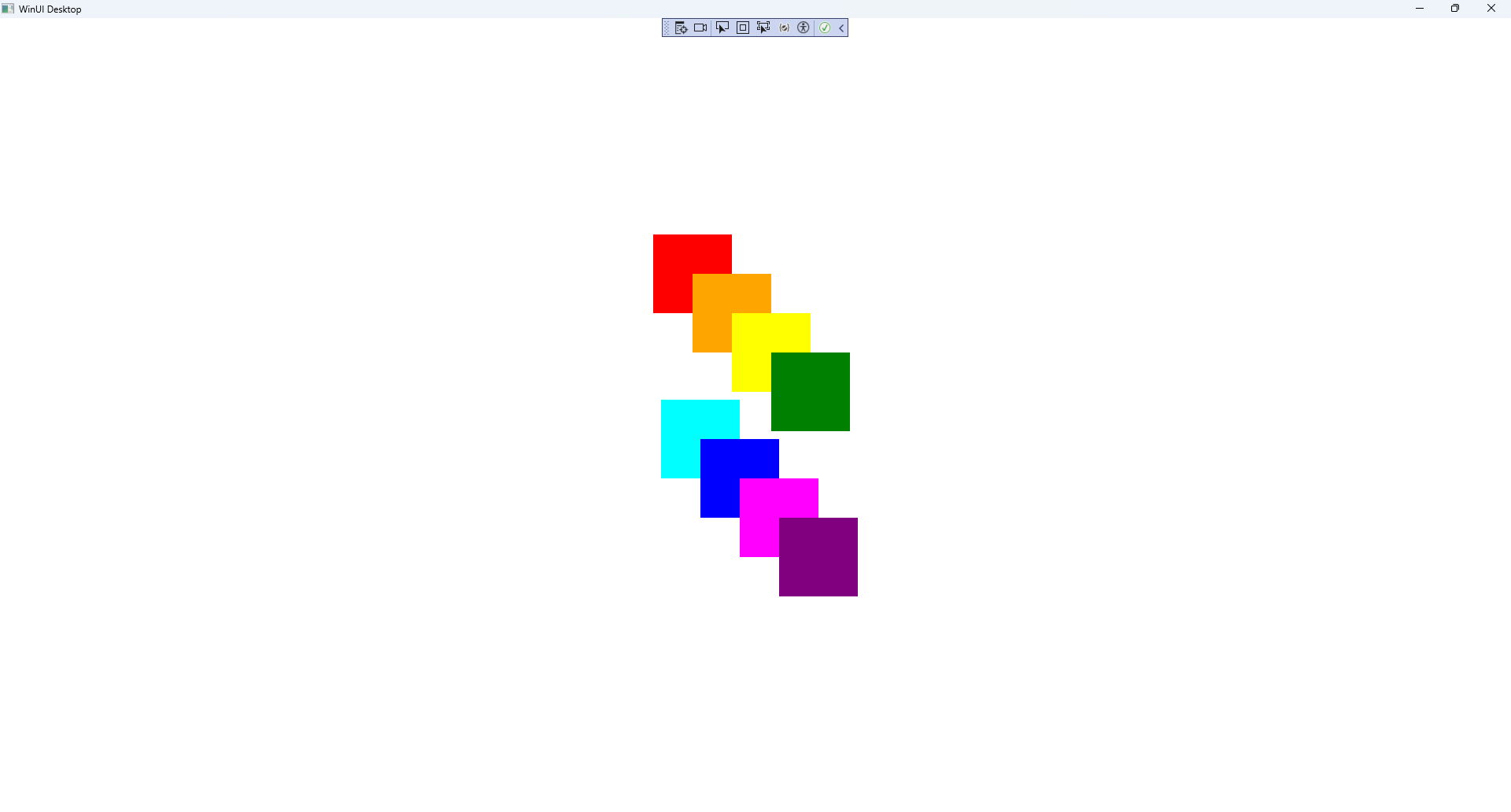

Once running you will see the Offset Panel displayed.

Step 16
