Navigation view

Learn to use the Navigation View in Windows App SDK with this Tutorial

Navigation View shows how you can use the NavigationView with the Windows App SDK allowing for the use of hamburger-menu style navigation within an application.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

In Windows 11 choose Start and then find or search for Visual Studio 2022 and then select it.
Visual Studio 2022
Once Visual Studio 2022 has started select Create a new project.
Create a new project
Then choose the Blank App, Packages (WinUI in Desktop) and then select Next.
Blank App, Packages (WinUI in Desktop)
After that in Configure your new project type in the Project name as NavigationView, then select a Location and then select Create to start a new Solution.
Configure project

Step 2

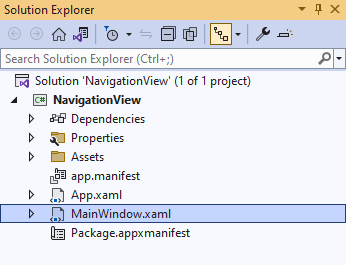

Within Solution Explorer for the Solution double-click on MainWindow.xaml to see the XAML for the Main Window.
Solution Explorer MainWindow.xaml

Step 3

In the XAML for MainWindow.xaml there will be some XAML for a StackPanel, this should be Removed:


<StackPanel Orientation="Horizontal"
HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button x:Name="myButton" Click="myButton_Click">Click Me</Button>
</StackPanel>


Step 4

While still in the XAML for MainWindow.xaml above </Window>, type in the following XAML:


<NavigationView Name="Navigation" IsSettingsVisible="False" IsPaneOpen="False">
    <NavigationView.MenuItems>
        <NavigationViewItem Content="Toggle" Tapped="Toggle_Tapped">
            <NavigationViewItem.Icon>
                <SymbolIcon Symbol="Accept"/>
            </NavigationViewItem.Icon>
        </NavigationViewItem>
    </NavigationView.MenuItems>
</NavigationView>


NavigationView is a Control that is used to display a hamburger-menu style of navigation with an application, it has the Property of IsPaneOpen set to False so the Pane will not be open at first. The NavigationView also has a set of MenuItems which contains the items to be used in the NavigationView which in this case is a NavigationViewItem with the Text of Toggle and the Icon for Accept which when Tapped or Clicked will toggle if the Pane for the NavigationView is displayed or not, also done with the "hamburger" button at the top.

Step 5

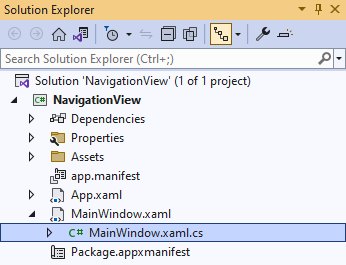

Within Solution Explorer for the Solution select the arrow next to MainWindow.xaml then double-click on MainWindow.xaml.cs to see the Code for the Main Window.
Solution Explorer MainWindow.xaml.cs

Step 6

In the Code for MainWindow.xaml.cs there be a Method of myButton_Click(...) this should be Removed by removing the following:


private void myButton_Click(object sender, RoutedEventArgs e)
{
    myButton.Content = "Clicked";
}


Step 7

Once myButton_Click(...) has been removed, below the end of public MainWindow() { ... } type in the following Code:


private void Toggle_Tapped(object sender, TappedRoutedEventArgs e)
{
    Navigation.IsPaneOpen = !Navigation.IsPaneOpen;
}


The Method of Toggle_Tapped will be triggered when the NavigationViewItem of Toggle is Tapped or Clicked, this will set the Property for IsPaneOpen of the NavigationView to be the opposite of itself. IsPaneOpen is a bool which means it can either be true or false, the ! is the not-operator and this will change anything that is true to false, and anything false to true and this can be used to Toggle the value of the Property for IsPaneOpen.

Step 8

That completes the Windows App SDK application. In Visual Studio 2022 from the Toolbar select NavigationView (Package) to Start the application.
NavigationView (Package)

Step 9

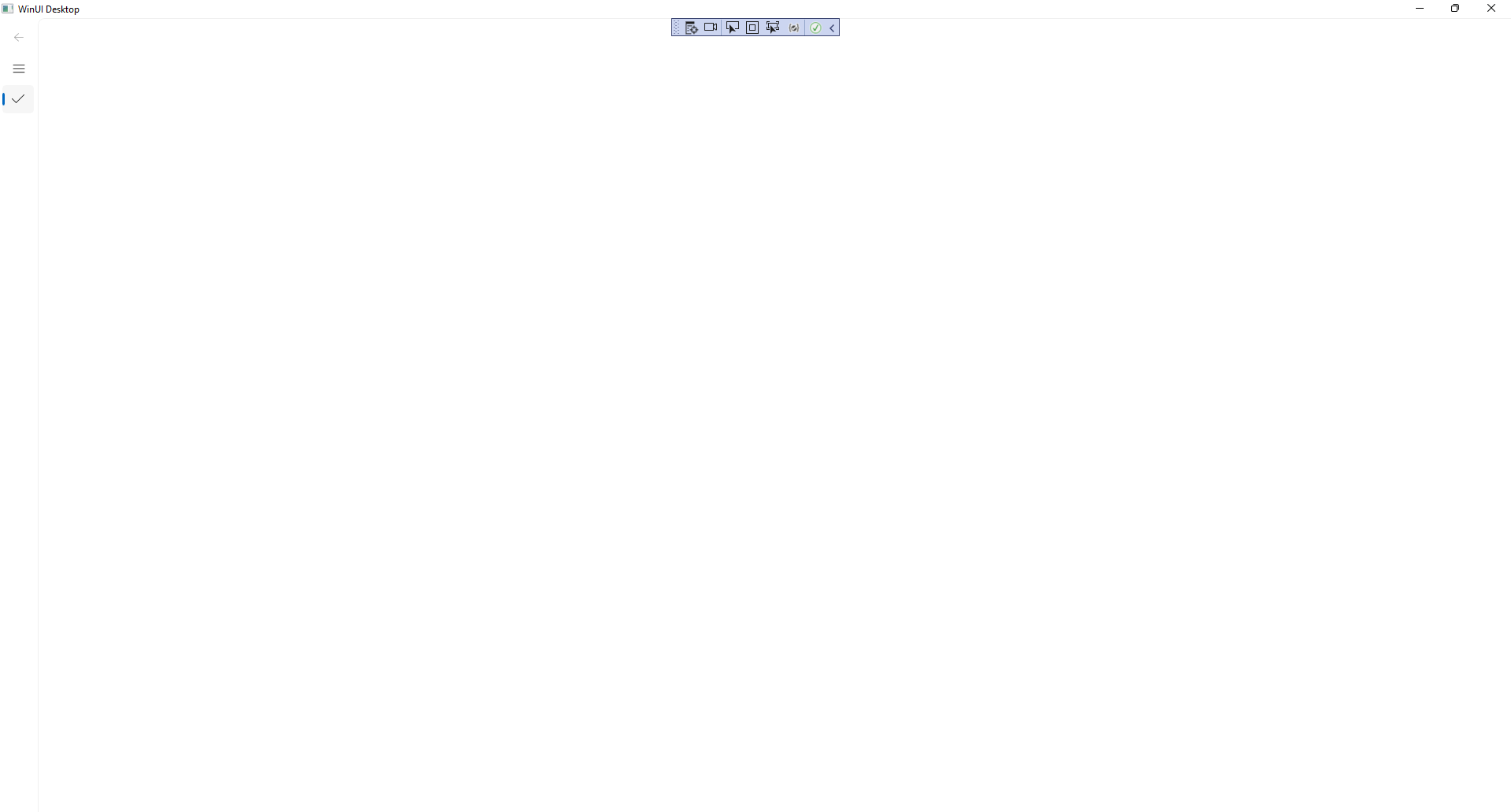

Once running you should see the NavigationView with the NavigationViewItem with the Icon for Accept which is a "tick" and above this is the "hamburger" button.

Command Bar Running

Step 10

If you Tap or Click on the NavigationViewItem with the Icon for Accept, this will show or hide the Pane for the NavigationView which you can also do by Tapping or Clicking on the "hamburger" button and allow you to see the Text of Toggle and you can Click or Tap this to hide the Pane again.

Navigation View Output

Step 11

To Exit the Windows App SDK application, select the Close button from the top right of the application as that concludes this Tutorial for Windows App SDK from tutorialr.com!
Close application
