Hello Input

Learn input and output with Hello Input using Windows App SDK with this Tutorial

Hello Input shows you how to use a ContentDialog with a TextBox that you can type into and show that text in another ContentDialog using the Windows App SDK.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

In Windows 11 choose Start and then find or search for Visual Studio 2022 and then select it.
Visual Studio 2022
Once Visual Studio 2022 has started select Create a new project.
Create a new project
Then choose the Blank App, Packages (WinUI in Desktop) and then select Next.
Blank App, Packages (WinUI in Desktop)
After that in Configure your new project type in the Project name as HelloInput, then select a Location and then select Create to start a new Solution.
Configure project

Step 2

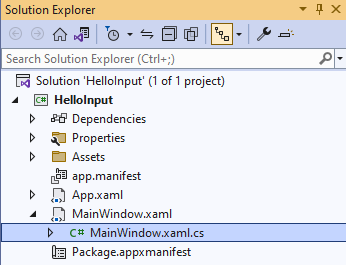

Within Solution Explorer for the Solution select the arrow next to MainWindow.xaml then double-click on MainWindow.xaml.cs to see the Code for the Main Window.
Solution Explorer MainWindow.xaml.cs

Step 3

In the Code for MainWindow.xaml.cs there will already be a Method of myButton_Click(...) and within this the following Line should be Removed:


myButton.Content = "Clicked";


Step 4

Then in myButton_Click(...) where myButton.Content = "Clicked"; was Removed type in the following:


TextBox input = new()
{
    PlaceholderText = "Display Text"
};
ContentDialog dialog = new()
{
    XamlRoot = Content.XamlRoot,
    PrimaryButtonText = "Display",
    SecondaryButtonText = "Close",
    Title = "Hello Input",
    Content = input
};
ContentDialogResult result = await dialog.ShowAsync();
if(result == ContentDialogResult.Primary)
{
    dialog.Content = (dialog.Content as TextBox).Text;
    dialog.PrimaryButtonText = string.Empty;
    await dialog.ShowAsync();
}


This will create TextBox which will be used to type in what should be display, then there is an Instance of a ContentDialog with the Content of set to the TextBox it also has a Title set to the text of Hello Input along with having the PrimaryButtonText set to Display and the SecondaryButtonText set to Close, which when selected will Close the ContentDialog. When Display is Clicked this will produce the ContentDialogResult.Primary value. Should this be the case, the Content will be set to the Property of Text of TextBox which will be the contents of what was typed into it. The PrimaryButtonText is reset as this option is not needed when the ContentDialog is shown again. To show the ContentDialog the Method for ShowAsync is used which uses the Keyword for await which means it will perform a Task that won't happen at the same time, or Asynchronously and XamlRoot is also set to allow the ContentDialog to work correctly. A good concept shown here is of Code Reuse, as it is possible to use the same Instance of the ContentDialog to display both messages.

Step 5

While still in the Method for myButton_Click(...) between private and void type in the following:


async


Because the Method for ShowAsync is asynchronous using the Keyword of await so you need to mark the Method it is used in as such, this done with the Keyword of async.

The Method for myButton_Click(...) should look as follows:


private async void myButton_Click(object sender, RoutedEventArgs e)
{
    TextBox input = new()
    {
        PlaceholderText = "Display Text"
    };
    ContentDialog dialog = new()
    {
        XamlRoot = Content.XamlRoot,
        PrimaryButtonText = "Display",
        SecondaryButtonText = "Close",
        Title = "Hello Input",
        Content = input
    };
    ContentDialogResult result = await dialog.ShowAsync();
    if(result == ContentDialogResult.Primary)
    {
        dialog.Content = (dialog.Content as TextBox).Text;
        dialog.PrimaryButtonText = string.Empty;
        await dialog.ShowAsync();
    }
}


When the Button is Clicked, the Method of myButton_Click(...) will be triggered and this display a ContentDialog with the Content set to a TextBox and the Title set to Hello Input.

Step 6

That completes the Windows App SDK application. In Visual Studio 2022 from the Toolbar select HelloInput (Package) to Start the application.
HelloInput (Package)

Step 7

Once running you should see the Button with the text of Click Me

Hello Input Running

Step 8

If you Click on the Button with the Text Click Me it will display the ContentDialog which you can then type anything into the TextBox or you can dismiss it with the Button for Close.

Hello Input Output

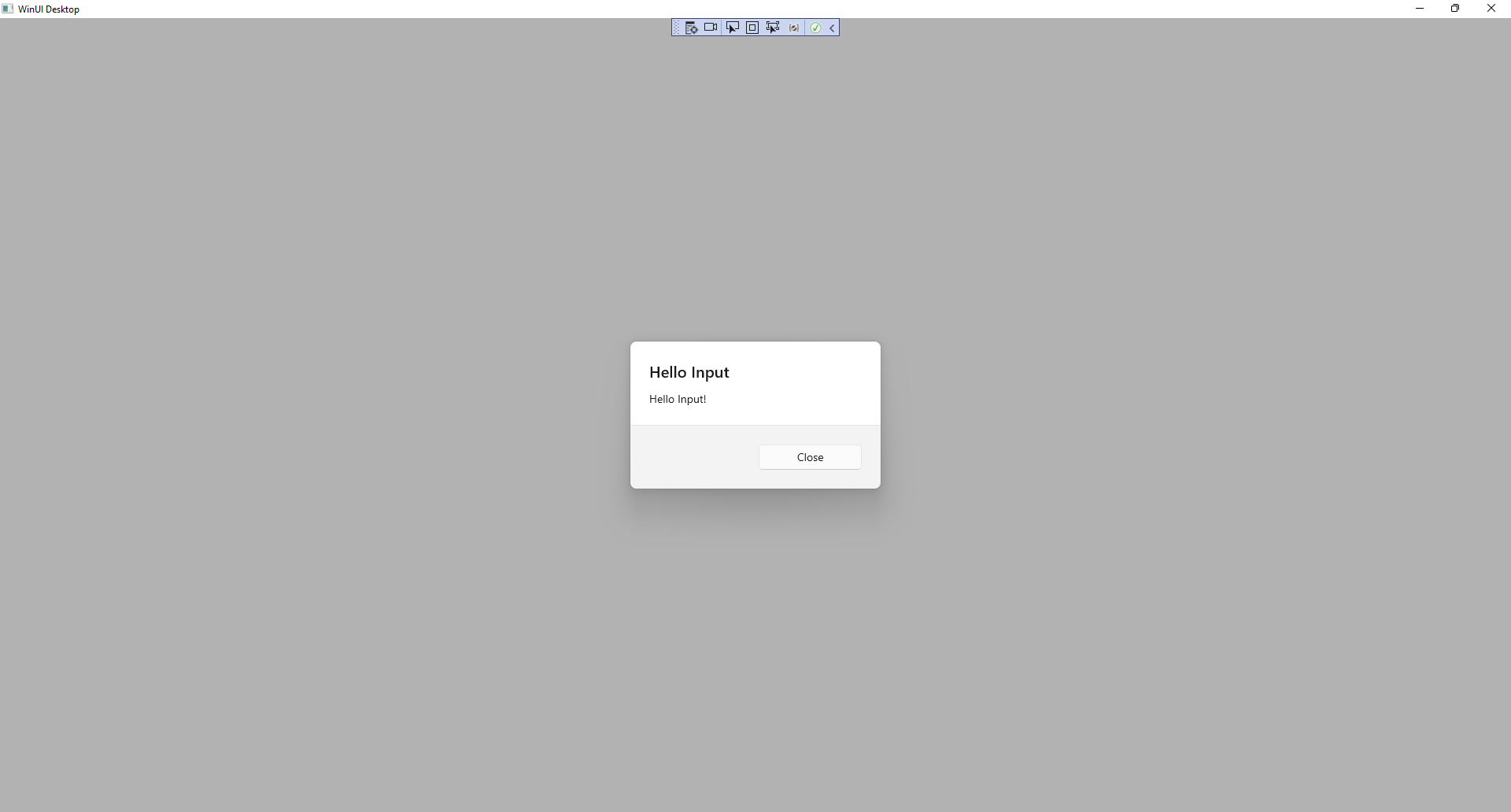

When you Click on the Button for Display whatever you typed in will displayed in a ContentDialog which you can then dismiss with the Button for Close.

Hello Input Message

Step 9

To Exit the Windows App SDK application, select the Close button from the top right of the application as that concludes this Tutorial for Windows App SDK from tutorialr.com!
Close application
