Docking Layout

Docking Layout shows how to create a Docking Panel using Windows App SDK.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

Step 2

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Step 3

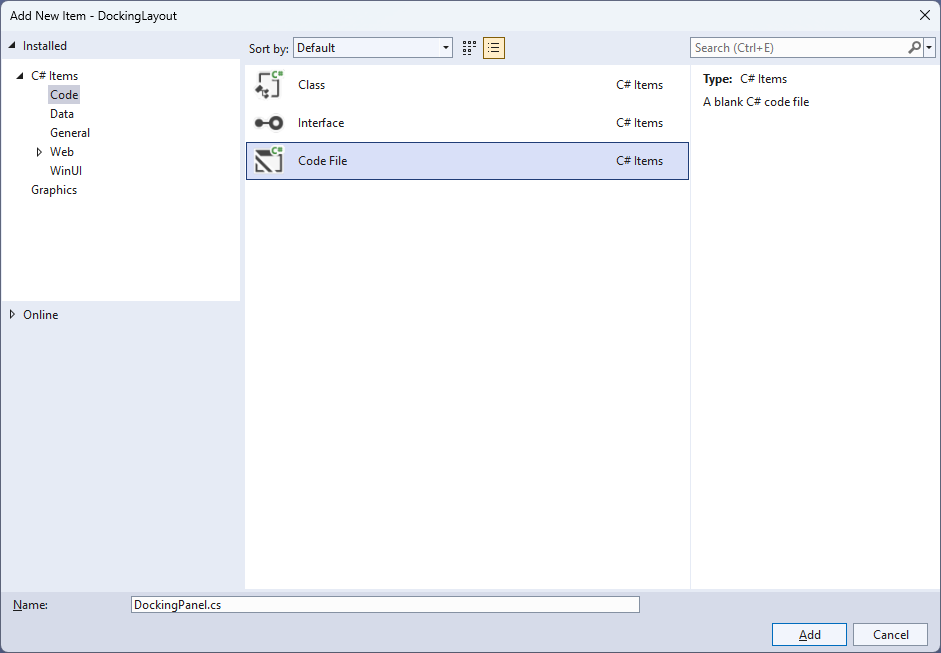

Then in Add New Item from the C# Items list, select Code and then select Code File from the list next to this, then type in the name of DockingPanel.cs and then Click on Add.

Step 4

Step 5

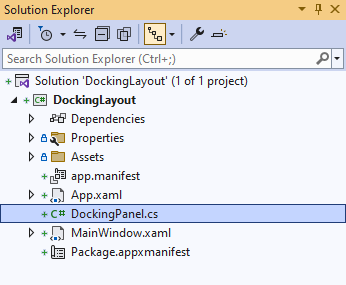

You will now be in the View for the Code of DockingPanel.cs, within this type the following Code:

using Microsoft.UI.Xaml;
using Microsoft.UI.Xaml.Controls;
using System;
using Windows.Foundation;

namespace DockingLayout;

public class DockingPanel : Panel
{
    public enum Dock
    {
        Left,
        Top,
        Right,
        Bottom
    }

    // Dependency Properties, Properties, Get Dock & Set Dock Methods

    // Measure Override Method

    // Arrange Override Method

}


There are using statements for the User Control, a namespace for DockingLayout along with a class of DockingPanel that will represent the User Control and Inherits the class of Panel which has an enum of Dock for the different Docking options supported by the User Control.

Step 6

Then in the namespace of DockingLayout in the class of DockingPanel after the Comment of // Dependency Properties, Properties, Get Dock & Set Dock Methods type the following Dependency Properties, Properties and Methods

public static readonly DependencyProperty LastChildFillProperty =
DependencyProperty.Register(nameof(LastChildFill), typeof(bool),
typeof(DockingPanel), new PropertyMetadata(false));

public static readonly DependencyProperty DockProperty =
DependencyProperty.RegisterAttached(nameof(Dock), typeof(Dock),
typeof(DockingPanel), new PropertyMetadata(Dock.Left));

public bool LastChildFill
{
    get { return (bool)GetValue(LastChildFillProperty); }
    set { SetValue(LastChildFillProperty, value); }
}

public static Dock GetDock(UIElement element)
{
    ArgumentNullException.ThrowIfNull(element);
    return (Dock)element.GetValue(DockProperty);
}

public static void SetDock(UIElement element, Dock dock)
{
    ArgumentNullException.ThrowIfNull(element);
    element.SetValue(DockProperty, dock);
}


Dependency Properties or Properties for the User Control can be customised for the Docking Panel along with some convention-based Methods of GetDock and SetDock used with the Property of Dock.

Step 7

While still in the namespace of DockingLayout in the class of DockingPanel after the Comment of // Measure Override Method type the following Method:

protected override Size MeasureOverride(Size availableSize)
{
    double width = 0.0;
    double height = 0.0;
    double maxWidth = 0.0;
    double maxHeight = 0.0;
    foreach (var element in Children)
    {
        var remainingSize = new Size(
            Math.Max(0.0, availableSize.Width - width),
            Math.Max(0.0, availableSize.Height - height));
        element.Measure(remainingSize);
        var desiredSize = element.DesiredSize;
        switch (GetDock(element))
        {
            case Dock.Left:
            case Dock.Right:
                maxHeight = Math.Max(maxHeight, height + desiredSize.Height);
                width += desiredSize.Width;
                break;
            case Dock.Top:
            case Dock.Bottom:
                maxWidth = Math.Max(maxWidth, width + desiredSize.Width);
                height += desiredSize.Height;
                break;
        }
    }
    maxWidth = Math.Max(maxWidth, width);
    maxHeight = Math.Max(maxHeight, height);
    return new Size(maxWidth, maxHeight);
}


The Method of MeasureOverride will Measure the Size required to layout the Children of the Panel.

Step 8

While still in the namespace of DockingLayout in the class of DockingPanel after the Comment of // Arrange Override Method type the following Method:

protected override Size ArrangeOverride(Size finalSize)
{
    double left = 0.0;
    double top = 0.0;
    double right = 0.0;
    double bottom = 0.0;
    var children = Children;
    var count = children.Count - (LastChildFill ? 1 : 0);
    var index = 0;
    foreach (var element in children)
    {
        var rect = new Rect(left, top,
            Math.Max(0.0, finalSize.Width - left - right),
            Math.Max(0.0, finalSize.Height - top - bottom));
        if (index < count)
        {
            var desiredSize = element.DesiredSize;
            switch (GetDock(element))
            {
                case Dock.Left:
                    left += desiredSize.Width;
                    rect.Width = desiredSize.Width;
                    break;
                case Dock.Top:
                    top += desiredSize.Height;
                    rect.Height = desiredSize.Height;
                    break;
                case Dock.Right:
                    right += desiredSize.Width;
                    rect.X = Math.Max(0.0, finalSize.Width - right);
                    rect.Width = desiredSize.Width;
                    break;
                case Dock.Bottom:
                    bottom += desiredSize.Height;
                    rect.Y = Math.Max(0.0, finalSize.Height - bottom);
                    rect.Height = desiredSize.Height;
                    break;
            }
        }
        element.Arrange(rect);
        index++;
    }
    return finalSize;
}


The Method of ArrangeOverride will position the Children of the Panel using the Property of Dock getting the correct Size of them for the User Control.

Step 9

Step 10

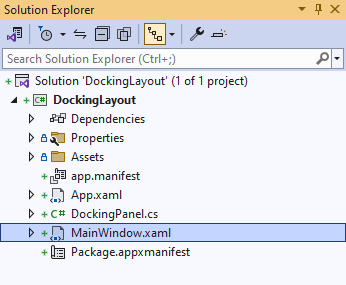

In the XAML for MainWindow.xaml there will be some XAML for a StackPanel, this should be Removed:

<StackPanel Orientation="Horizontal"
HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button x:Name="myButton" Click="myButton_Click">Click Me</Button>
</StackPanel>


Step 11

While still in the XAML for MainWindow.xaml above </Window>, type in the following XAML:


<local:DockingPanel LastChildFill="True"
    HorizontalAlignment="Center" VerticalAlignment="Center">
    <Rectangle Width="100" Height="100" Fill="Red"
    Margin="10" local:DockingPanel.Dock="Top"/>
    <Rectangle Width="100" Height="100" Fill="Orange"
    Margin="10" local:DockingPanel.Dock="Top"/>
    <Rectangle Width="100" Height="100" Fill="Yellow"
    Margin="10" local:DockingPanel.Dock="Bottom"/>
    <Rectangle Width="100" Height="100" Fill="Green"
    Margin="10" local:DockingPanel.Dock="Bottom"/>
    <Rectangle Width="100" Height="100" Fill="Cyan"
    Margin="10" local:DockingPanel.Dock="Left"/>
    <Rectangle Width="100" Height="100" Fill="Blue"
    Margin="10" local:DockingPanel.Dock="Left"/>
    <Rectangle Width="100" Height="100" Fill="Magenta"
    Margin="10" local:DockingPanel.Dock="Right"/>
    <Rectangle Width="100" Height="100" Fill="Purple"
    Margin="10" local:DockingPanel.Dock="Right"/>
</local:DockingPanel>


This XAML contains the User Control of DockingPanel with LastChildFill set to True and the Children containing Controls for a Rectangle in various colours.

Step 12

Step 13

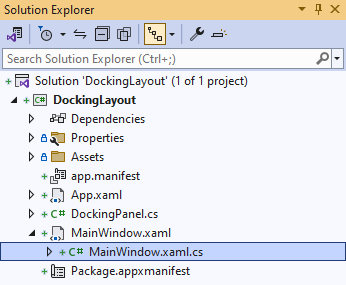

In the Code for MainWindow.xaml.cs there be a Method of myButton_Click(...) this should be Removed by removing the following:

private void myButton_Click(object sender, RoutedEventArgs e)
{
    myButton.Content = "Clicked";
}


Step 14

Step 15

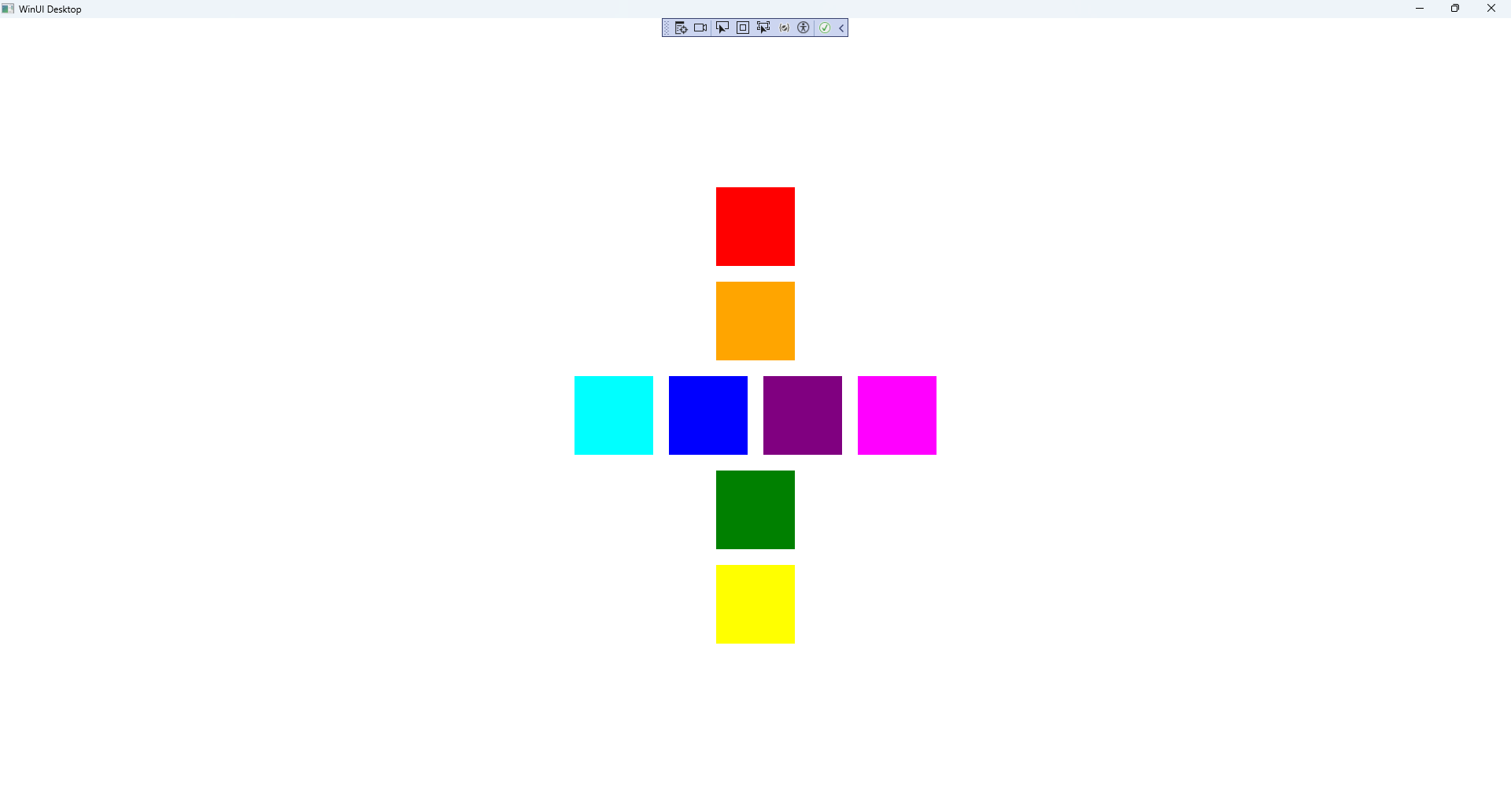

Once running you will see the Docking Panel displayed.
