Connection Animation

Learn to use a Connected Animation in Windows App SDK with this Tutorial

Connected Animation shows how you can create Connected Animations between Pages within an application using the Windows App SDK.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

In Windows 11 choose Start and then find or search for Visual Studio 2022 and then select it.
Visual Studio 2022
Once Visual Studio 2022 has started select Create a new project.
Create a new project
Then choose the Blank App, Packages (WinUI in Desktop) and then select Next.
Blank App, Packages (WinUI in Desktop)
After that in Configure your new project type in the Project name as ConnectedAnimation, then select a Location and then select Create to start a new Solution.
Configure project

Step 2

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Add New Item

Step 3

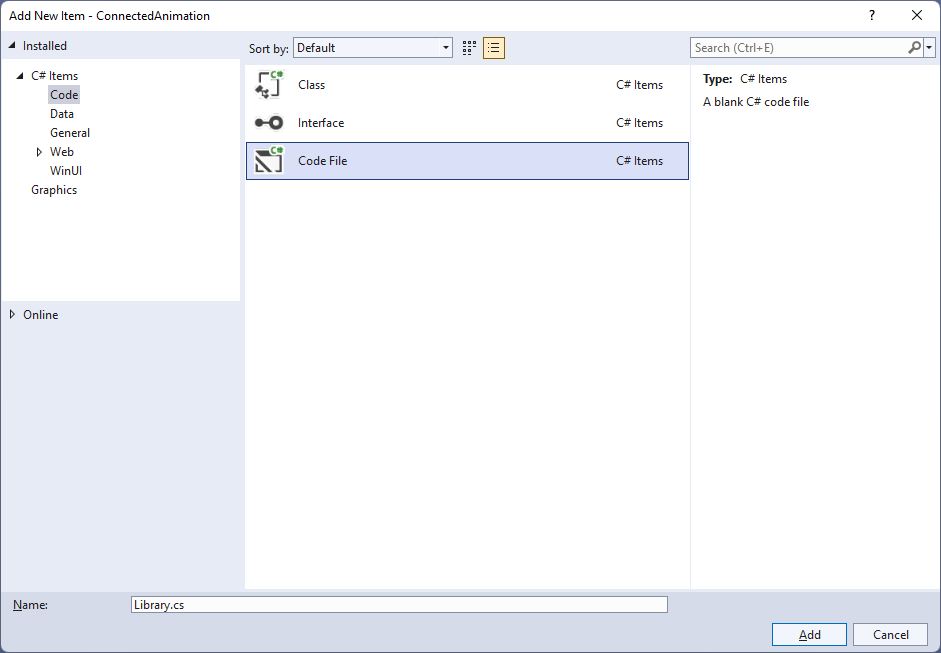

Then in Add New Item from the C# Items list, select Code and then select Code File from the list next to this, then type in the name of Library.cs and then Click on Add.

Add New Code File

Step 4

You will now be in the View for the Code of Library.cs, within this type the following Code:


using Microsoft.UI.Xaml.Controls;
using Microsoft.UI.Xaml.Media;
using Microsoft.UI.Xaml.Media.Animation;
using Microsoft.UI.Xaml.Shapes;
using System;
using System.Linq;

internal static class Library
{
    private const string animate_back = "AnimateBack";
    private const string animate_next = "AnimateNext";

    public static Frame Frame { get; set; }

    public static string Current { get; set; }

    public static void Back(ListView listview)
    {
        var rectangle = listview.Items
        .SingleOrDefault(f => (f as Rectangle)
        .Tag.Equals(Current)) as Rectangle;
        var animation = ConnectedAnimationService
        .GetForCurrentView()
        .GetAnimation(animate_back);
        animation?.TryStart(rectangle);
    }

    public static Brush Next(object selected)
    {
        var rectangle = selected as Rectangle;
        Current = rectangle.Tag as string;
        ConnectedAnimationService
        .GetForCurrentView()
        .PrepareToAnimate(animate_next, rectangle);
        return rectangle.Fill;
    }

    // Other Methods

}


The Class that has been defined so far in Library.cs has const values along with Properties for Frame and Current then a Method for Back and Next that will be used to create the Connected Animation when going backwards and forwards between the Pages using the ConnectedAnimationService.

Step 5

While still in the Class for Library.cs and after the Comment of // Other Methods type in the following other Methods:


public static void From(Rectangle from)
{
    ConnectedAnimationService
    .GetForCurrentView()
    .PrepareToAnimate(animate_back, from);
}

public static void Loaded(Rectangle rectangle)
{
    var animation = ConnectedAnimationService
    .GetForCurrentView()
    .GetAnimation(animate_next);
    rectangle.Opacity = 1;
    animation?.TryStart(rectangle);
}

public static void Navigate(Type page, object parameter)
{
    Frame.Navigate(page, Next(parameter));
}

public static Brush GetBrush(object parameter)
{
    return parameter as SolidColorBrush;
}


The Methods for From and Loaded will create the animation flow when going between the Pages and Method for Navigate will use the Method for Navigate of the Frame and the Method for GetBrush will return a SolidColorBrush from an object of parameter.

Step 6

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Add New Item

Step 7

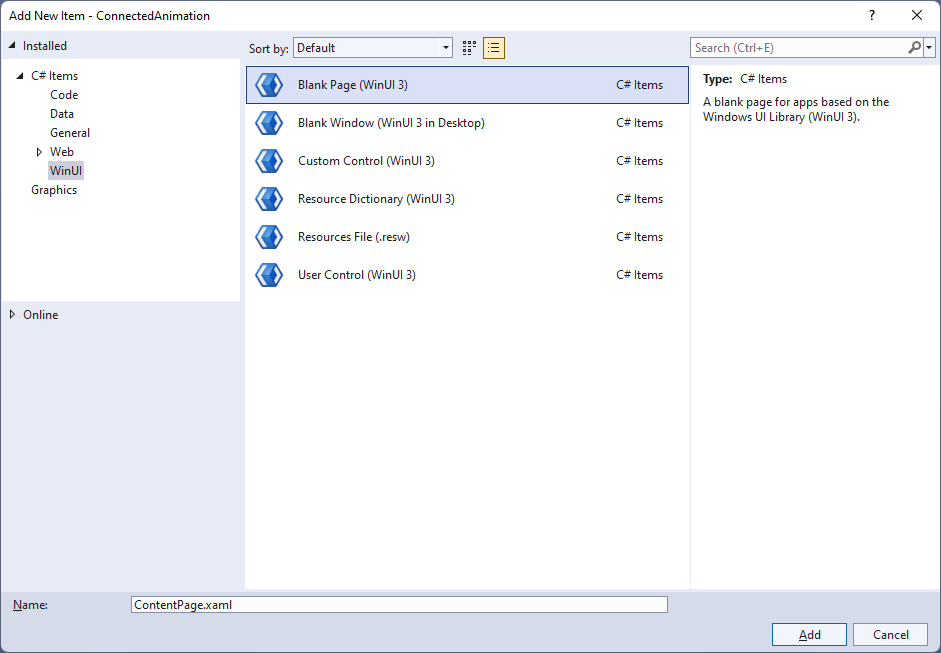

Then in Add New Item from the WinUI items list, select Page and then select Blank Page (WinUI 3) from the list next to this, then type in the name of ContentPage.xaml and then Click on Add.

Add New Blank page

Step 8

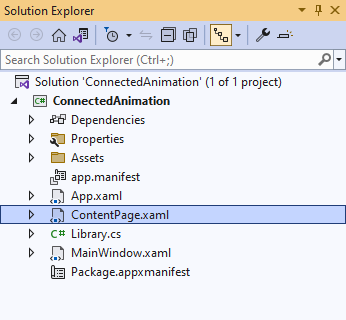

Within Solution Explorer for the Solution double-click on ContentPage.xaml to see the XAML for the Content Page.
Solution Explorer ContentPage.xaml

Step 9

Then in the XAML for ContentPage.xaml, below <Grid> and above </Grid>, type in the following XAML:


<ListView Name="Display" Margin="10">
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Black" Fill="Black" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Gray" Fill="Gray" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Red" Fill="Red" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Orange" Fill="Orange" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Yellow" Fill="Yellow" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Green" Fill="Green" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
        Width="64" Height="64" Tag="Cyan" Fill="Cyan" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
        Width="64" Height="64" Tag="Blue" Fill="Blue" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Magenta" Fill="Magenta" Tapped="Rectangle_Tapped"/>
    <Rectangle HorizontalAlignment="Left" Margin="10"
    Width="64" Height="64" Tag="Purple" Fill="Purple" Tapped="Rectangle_Tapped"/>
</ListView>


This ListView contains Rectangle elements of different colours plus each has the Event for Tapped set to the Method of Rectangle_Tapped which will be triggered when the Rectangle is Tapped or Clicked.

Step 10

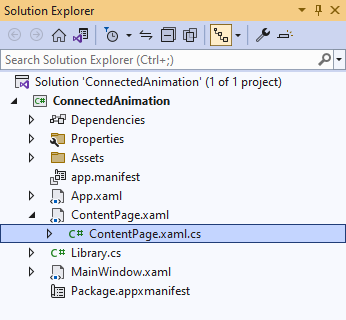

Within Solution Explorer for the Solution select the arrow next to ContentPage.xaml then double-click on ContentPage.xaml.cs to see the Code for the Content Page.
Solution Explorer ContentPage.xaml.cs

Step 11

In the Code for ContentPage.xaml.cs type in the following Code below the end of the Constructor of public ContentPage() { ... }:


protected override void OnNavigatedTo(NavigationEventArgs e)
{
    if (e.NavigationMode == NavigationMode.Back)
    {
        Library.Back(Display);
    }
    base.OnNavigatedTo(e);
}

private void Rectangle_Tapped(object sender, TappedRoutedEventArgs e)
{
    Library.Navigate(typeof(DetailPage), sender);
}


There is the Method for OnNavigatedTo that uses override to change the functionality of the Method for OnNavigatedTo which will check the NavigationMode and call the Method of Back in the Class of Library and pass through the ListView it also calls the version of the Method that was Overridden with base.OnNavigatedTo(e) there is also another Method of Rectangle_Tapped which will call the Method of Navigate in the Class of Library when a Rectangle is Tapped or Clicked.

Step 12

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Add New Item

Step 13

Then in Add New Item from the WinUI items list, select Page and then select Blank Page (WinUI 3) from the list next to this, then type in the name of DetailPage.xaml and then Click on Add.

Add New Blank page

Step 14

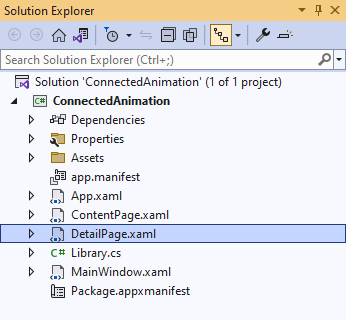

Within Solution Explorer for the Solution double-click on DetailPage.xaml to see the XAML for the Detail Page.
Solution Explorer DetailPage.xaml

Step 15

Then in the XAML for DetailPage.xaml, below <Grid> and above </Grid>, type in the following XAML:


<Rectangle Margin="50" Name="Target" Opacity="0" Loaded="Target_Loaded"/>
<CommandBar VerticalAlignment="Bottom">
    <AppBarButton Icon="Back" Label="Back" Click="Back_Click"/>
</CommandBar>


There is Rectangle element of Target along with an AppBarButton set to a Method of Back_Click which will be triggered when the AppBarButton is Clicked.

Step 16

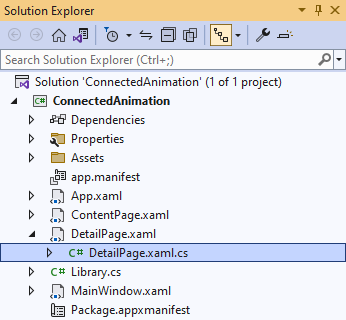

Within Solution Explorer for the Solution select the arrow next to DetailPage.xaml then double-click on DetailPage.xaml.cs to see the Code for the Detail Page.
Solution Explorer DetailPage.xaml.cs

Step 17

In the Code for DetailPage.xaml.cs type in the following Code below the end of the Constructor of public DetailPage() { ... }:


protected override void OnNavigatedTo(NavigationEventArgs e)
{
    Target.Fill = Library.GetBrush(e.Parameter);
}

protected override void OnNavigatingFrom(NavigatingCancelEventArgs e)
{
    if (e.NavigationMode == NavigationMode.Back)
        Library.From(Target);
    base.OnNavigatingFrom(e);
}

private void Target_Loaded(object sender, RoutedEventArgs e)
{
    Library.Loaded(Target);
}

private void Back_Click(object sender, RoutedEventArgs e)
{
    Library.Frame.GoBack();
}


There is a Method for OnNavigatedTo that uses override to change the functionality of the Method for OnNavigatedTo which will set Fill for the Rectangle element of Target using the Method of GetBrush from the Class for Library there is also an override for OnNavigatingFrom which will call the Method for From in the Class for Library when navigating backwards. There is also a Method of Target_Loaded for when the Rectangle element of Target has loaded and there is the Method for when the AppBarButton is Clicked of Back_Click which calls the Method of GoBack for the Frame in the Class for Library.

Step 18

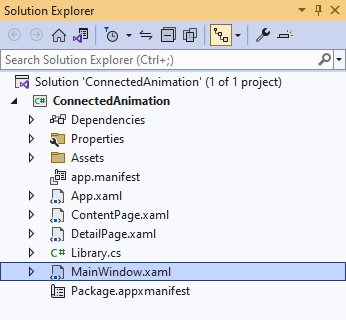

Within Solution Explorer for the Solution double-click on MainWindow.xaml to see the XAML for the Main Window.
Solution Explorer MainWindow.xaml

Step 19

In the XAML for MainWindow.xaml there will be some XAML for a StackPanel, this should be Removed:


<StackPanel Orientation="Horizontal"
HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button x:Name="myButton" Click="myButton_Click">Click Me</Button>
</StackPanel>


Step 20

While still in the XAML for MainWindow.xaml above </Window>, type in the following XAML:


<Frame Name="Frame"/>


Step 21

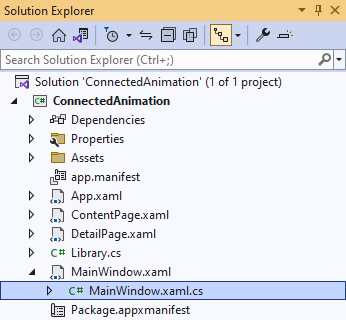

Within Solution Explorer for the Solution select the arrow next to MainWindow.xaml then double-click on MainWindow.xaml.cs to see the Code for the Main Window.
Solution Explorer MainWindow.xaml.cs

Step 22

In the Code for MainWindow.xaml.cs there be a Method of myButton_Click(...) this should be Removed by removing the following:


private void myButton_Click(object sender, RoutedEventArgs e)
{
    myButton.Content = "Clicked";
}


Step 23

Once myButton_Click(...) has been removed, within the Constructor of public MainWindow() { ... } and below the line of this.InitializeComponent(); type in the following Code:


Library.Frame = Frame;
Library.Frame.Navigate(typeof(ContentPage));


The Constructor of public MainWindow() { ... } should look like the following:


public MainWindow()
{
    this.InitializeComponent();
    Library.Frame = Frame;
    Library.Frame.Navigate(typeof(ContentPage));
}


These set up the Property for the Frame and call the Method for Navigate in the class of Library.

Step 24

That completes the Windows App SDK application. In Visual Studio 2022 from the Toolbar select ConnectedAnimation (Package) to Start the application.
ConnectedAnimation (Package)

Step 25

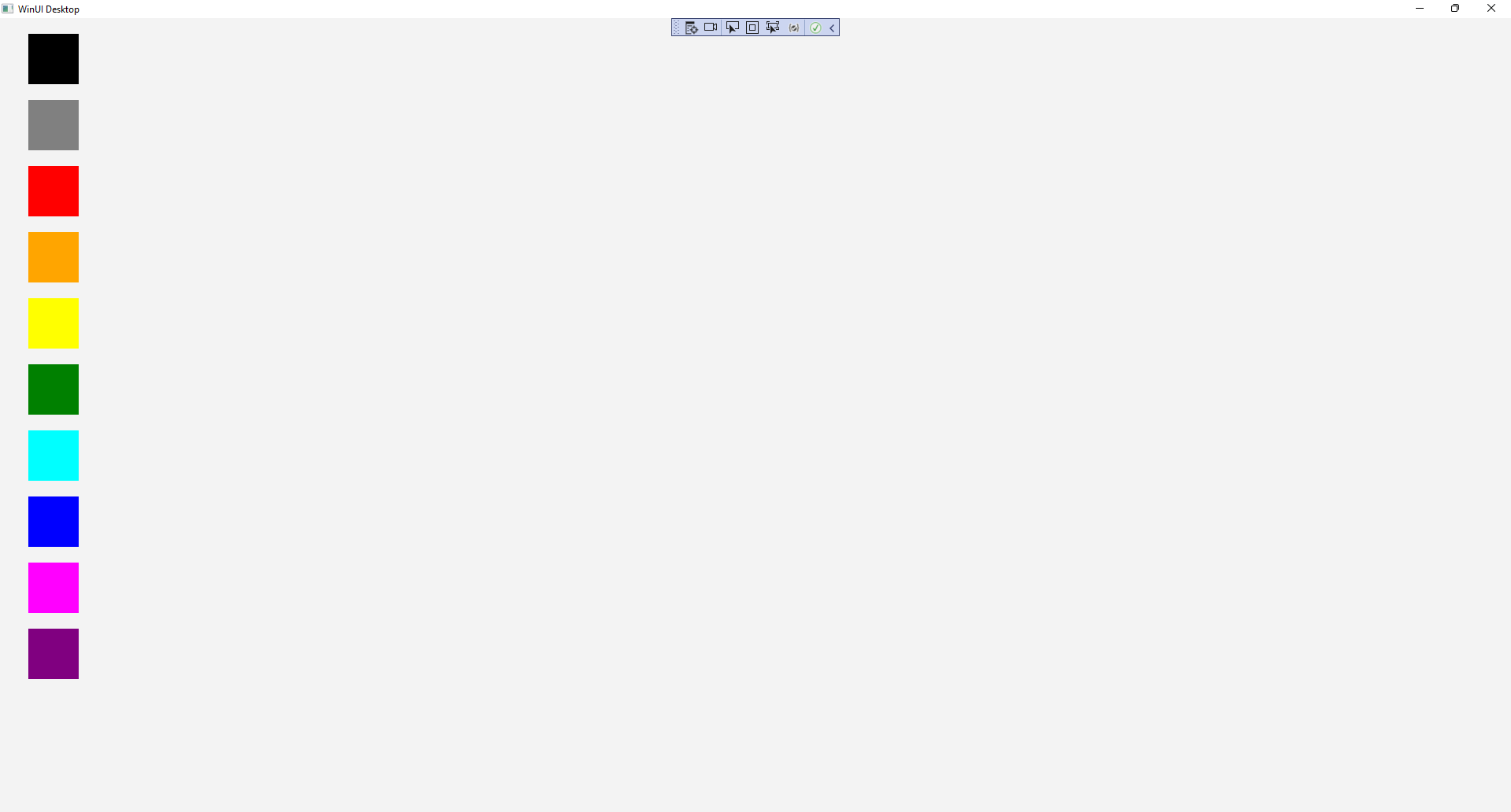

Once running you should see the Rectangle elements.

Connected Animation Running

Step 26

You can Click on any of the Rectangle elements to switch from the Content Page to the Detail Page and observe the Connected Animation.

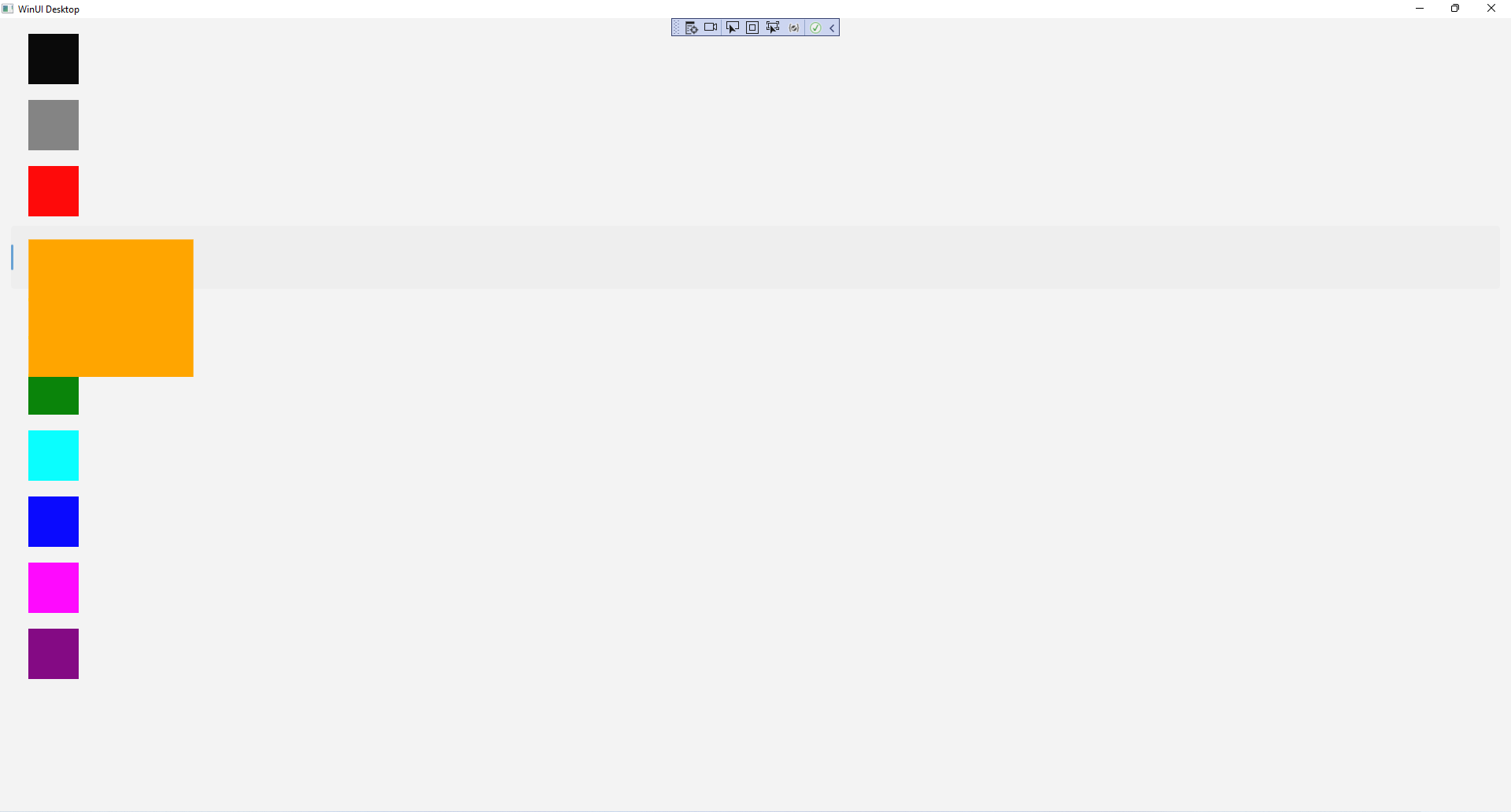

Connected Animation Output

Step 27

To Exit the Windows App SDK application, select the Close button from the top right of the application as that concludes this Tutorial for Windows App SDK from tutorialr.com!
Close application
