Badge Notifications

Learn to use Badge Notifications in Windows App SDK with this Tutorial

Badge Notifications shows how you can use BadgeNotification with the Windows App SDK. This allows you to display different Badges on the Icon for your application in the Taskbar of Windows.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

In Windows 11 choose Start and then find or search for Visual Studio 2022 and then select it.
Visual Studio 2022
Once Visual Studio 2022 has started select Create a new project.
Create a new project
Then choose the Blank App, Packages (WinUI in Desktop) and then select Next.
Blank App, Packages (WinUI in Desktop)
After that in Configure your new project type in the Project name as BadgeNotifications, then select a Location and then select Create to start a new Solution.
Configure project

Step 2

Then in Visual Studio within Solution Explorer for the Solution, right click on the Project shown below the Solution and then select Add then New Item…

Add New Item

Step 3

Then in Add New Item from the C# Items list, select Code and then select Code File from the list next to this, then type in the name of Library.cs and then Click on Add.

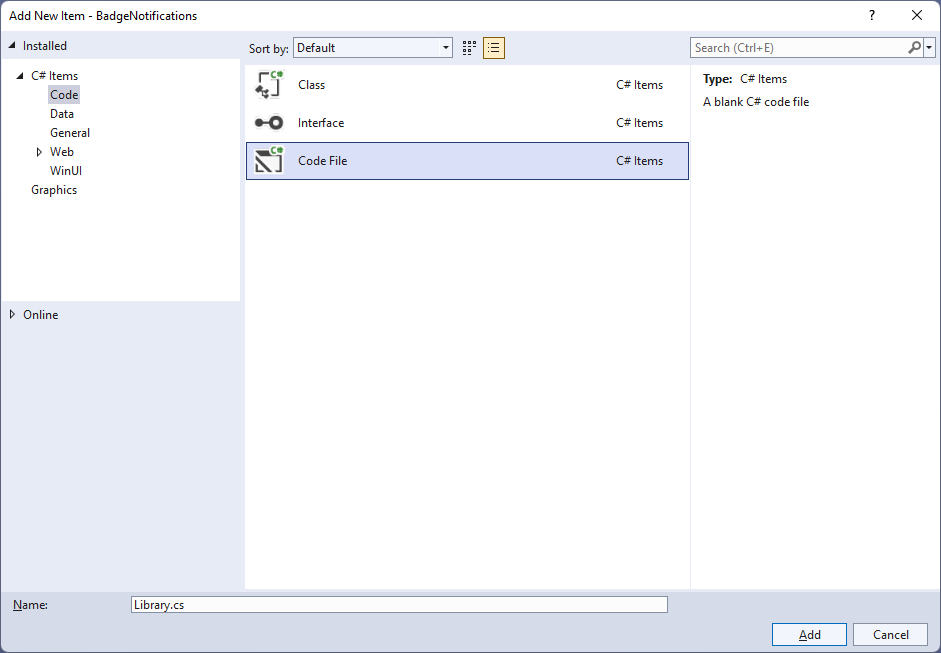

Add New Code File

Step 4

You will now be in the View for the Code of Library.cs, within this type the following Code:


using Microsoft.UI.Xaml.Controls;
using System.Collections.Generic;
using Windows.Data.Xml.Dom;
using Windows.UI.Notifications;

internal class Library
{
    public List<string> Options => new()
    {
        "number", "activity", "alarm", "attention", "available", "away",
        "busy", "error", "newMessage", "paused", "playing", "unavailable"
    };

    public void SetBadge(ComboBox options, TextBox number)
    {
        var selected = options.SelectedValue as string;
        var result = selected == "number" ? number.Text : selected;
        XmlDocument badge = BadgeUpdateManager.GetTemplateContent(
        int.TryParse(result, out _) ?
            BadgeTemplateType.BadgeNumber :
            BadgeTemplateType.BadgeGlyph);
        XmlNodeList attributes = badge.GetElementsByTagName("badge");
        attributes[0].Attributes.GetNamedItem("value").NodeValue = result;
        BadgeNotification notification = new(badge);
        BadgeUpdateManager.CreateBadgeUpdaterForApplication().Update(notification);
    }

    public void ClearBadge()
    {
        BadgeUpdateManager.CreateBadgeUpdaterForApplication().Clear();
    }
}


The Class that has been defined in Library.cs has a Property for Options, with the exception number these are all the different types of Glyph that can be shown for a BadgeNotification. Then there is a Method of SetBadge which will get the SelectedValue of a ComboBox passed in. To get the Value to use, if the selected option was number then it should use the contents of a TextBox passed in, which is the Property for Text along with the BadgeTemplateType.BadgeNumber or it should use the one for BadgeTemplateType.BadgeGlyph. The lines to do this use a value that is a bool before ? which if true, the value after ? will be used, if false the value after : will be used, these together are Conditional Operators. There is some code to build up the elements of the Badge Notification using XML which is needed to create the BadgeNotification and then this is used with the BadgeUpdateManager. The other Method is used to clear the BadgeNotification using with the BadgeUpdateManager.

Step 5

Within Solution Explorer for the Solution double-click on MainWindow.xaml to see the XAML for the Main Window.

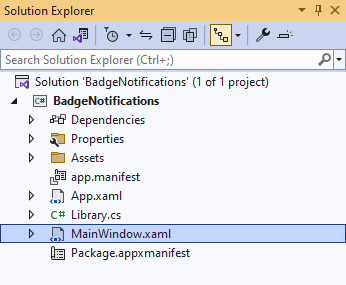

Solution Explorer MainWindow.xaml

Step 6

In the XAML for MainWindow.xaml there will be some XAML for a StackPanel, this should be Removed:


<StackPanel Orientation="Horizontal"
HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button x:Name="myButton" Click="myButton_Click">Click Me</Button>
</StackPanel>


Step 7

While still in the XAML for MainWindow.xaml above </Window>, type in the following XAML:


<Grid>
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto"/>
        <RowDefinition Height="*"/>
        <RowDefinition Height="Auto"/>
    </Grid.RowDefinitions>
    <StackPanel Grid.Row="0" Margin="25">
        <ComboBox Margin="5" Name="Options"
        HorizontalAlignment="Stretch"/>
        <TextBox Margin="5" PlaceholderText="Number"
        Name="Number" HorizontalAlignment="Stretch"/>
    </StackPanel>
    <CommandBar Grid.Row="3" VerticalAlignment="Bottom">
        <AppBarButton Icon="Accept" Label="Accept" Click="Accept_Click"/>
        <AppBarButton Icon="Cancel" Label="Clear" Click="Clear_Click"/>
    </CommandBar>
</Grid>


This XAML features a Grid with a StackPanel for the ComboBox and TextBox along with an AppBarButton to set or clear the BadgeNotification depending on which one was Clicked.

Step 8

Within Solution Explorer for the Solution select the arrow next to MainWindow.xaml then double-click on MainWindow.xaml.cs to see the Code for the Main Window.

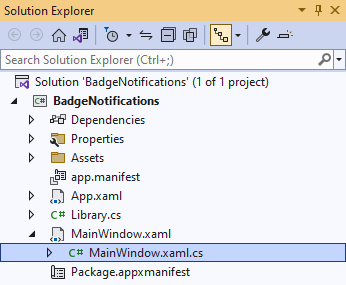

Solution Explorer MainWindow.xaml.cs

Step 9

In the Code for MainWindow.xaml.cs there be a Method of myButton_Click(...) this should be Removed by removing the following:


private void myButton_Click(object sender, RoutedEventArgs e)
{
    myButton.Content = "Clicked";
}


Step 10

Once myButton_Click(...) has been removed, type the following Code below the end of the Constructor of public MainWindow() { ... }:


private readonly Library _library = new();

private void Accept_Click(object sender, RoutedEventArgs e)
{
    _library.SetBadge(Options, Number);
}

private void Clear_Click(object sender, RoutedEventArgs e)
{
    _library.ClearBadge();
}


The Methods of Accept_Click and Clear_Click will call the Methods within Library.cs of SetBadge and ClearBadge respectively from an Instance of Library called _library created with new().

Step 11

While still in the Code for MainWindow.xaml.cs within the Constructor of public MainWindow() { ... } and below the line of this.InitializeComponent(); type in the following Code:


Options.ItemsSource = _library.Options;
Options.SelectedIndex = 0;


The Constructor of public MainWindow() { ... } should look like the following:


public MainWindow()
{
    this.InitializeComponent();
    Options.ItemsSource = _library.Options;
    Options.SelectedIndex = 0;
}


These set up the Properties for the ComboBox for ItemsSource to the list of Options from Library and for SelectedIndex to the first index which is 0 to select the first item.

Step 12

That completes the Windows App SDK application. In Visual Studio 2022 from the Toolbar select BadgeNotifications (Package) to Start the application.
BadgeNotifications (Package)

Step 13

Once running you should see the ComboBox, TextBox and CommandBar with Accept and Clear options.

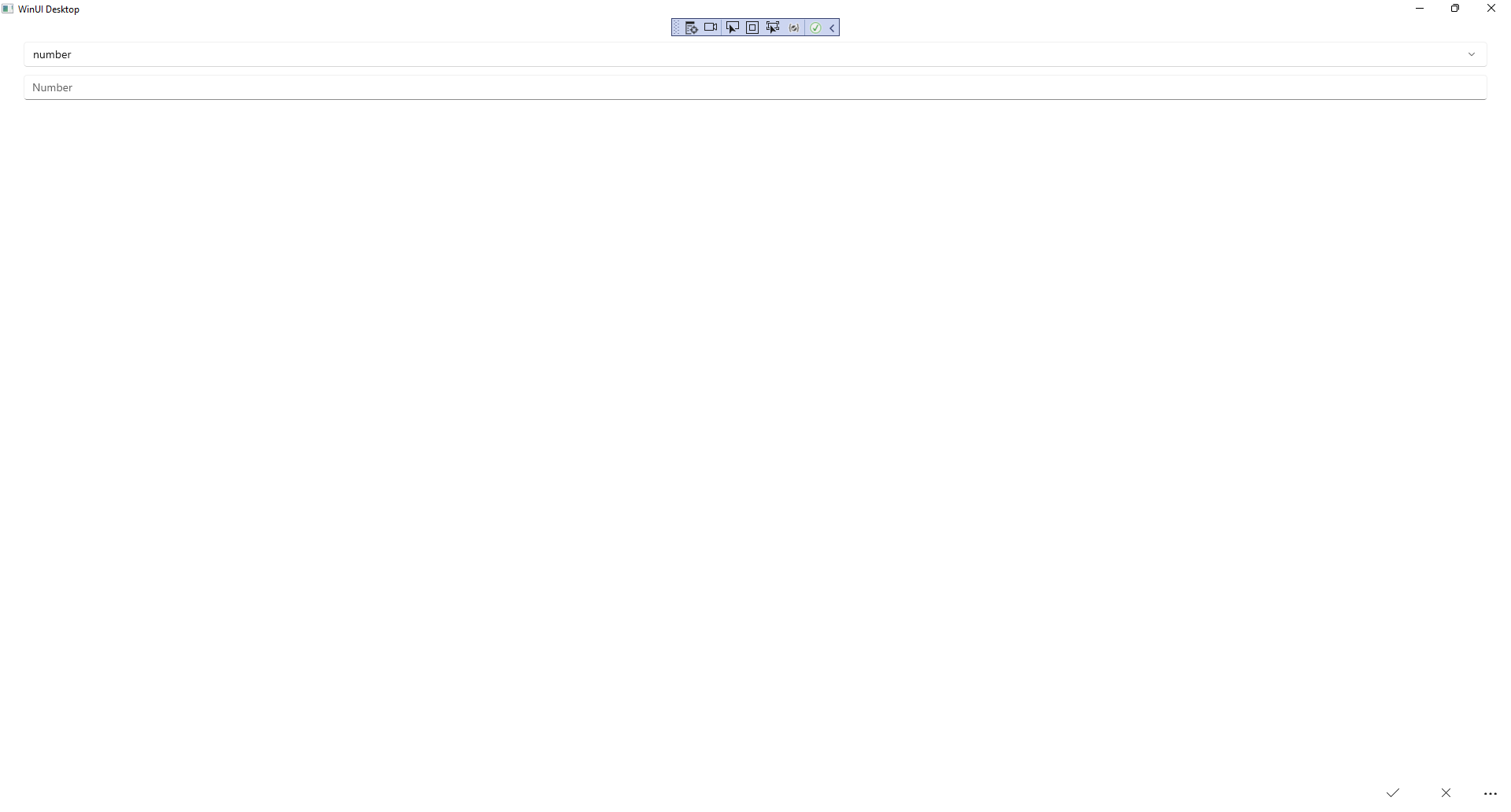

Badge Notifications Running

Step 14

You can select a value from the ComboBox and then use Accept to see this on a Badge on the Icon for the application in the Taskbar for example select number then enter a number or use Clear to reset the Badge.

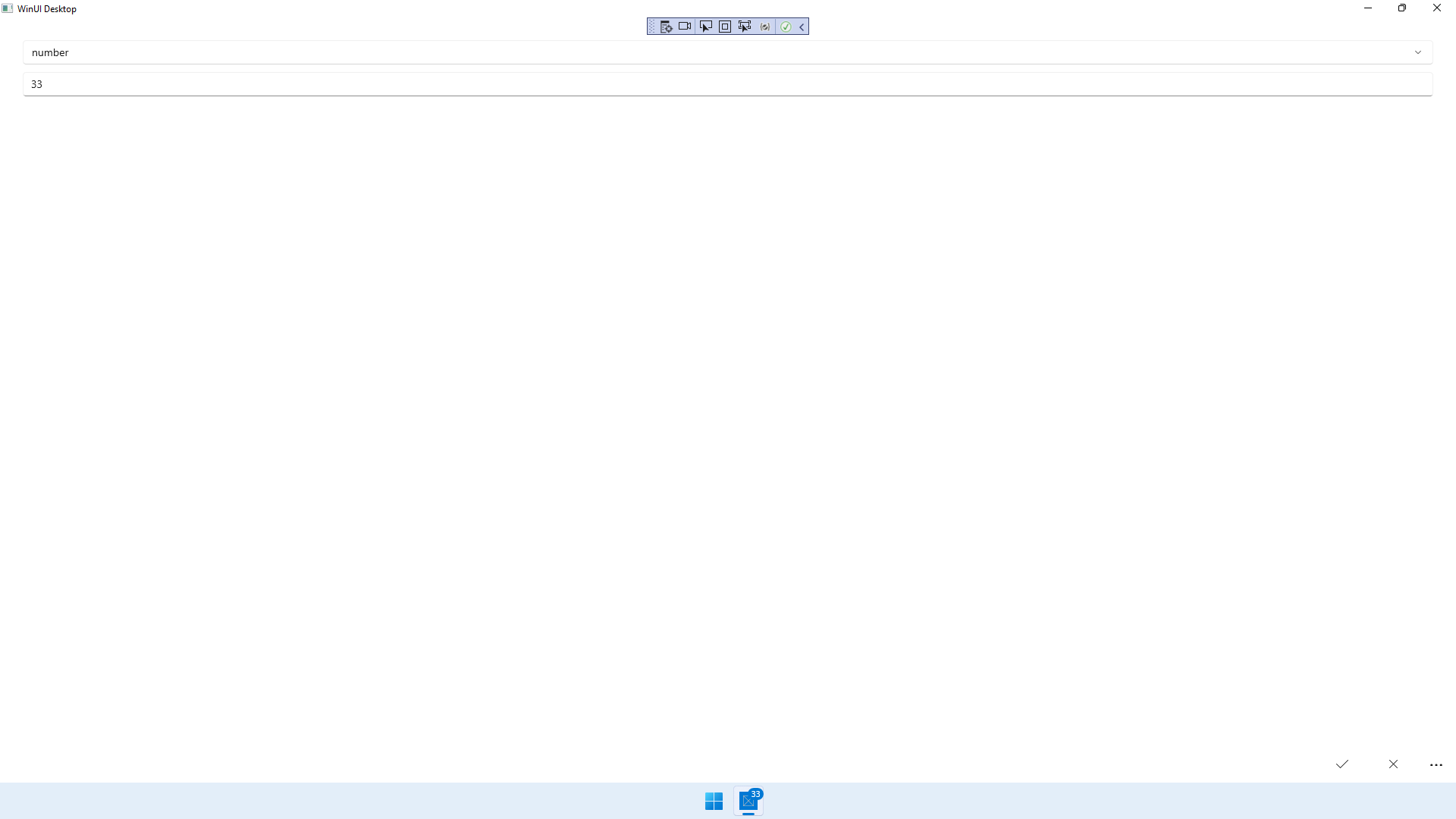

Badge BadgeNotifications Output

Step 15

To Exit the Windows App SDK application, select the Close button from the top right of the application as that concludes this Tutorial for Windows App SDK from tutorialr.com!
